Body Side [2016-2018]

Courtesy of VOLVO CARS CORPORATION

1. Measure from the center
2. Measure from the edge
3. Measure from the cut mark

Courtesy of VOLVO CARS CORPORATION

As measured from the bottom of the recess. If only one measurement point symbol is shown, it applies to both points. Otherwise, the symbols appear on each side of the measurement designation in the illustration.

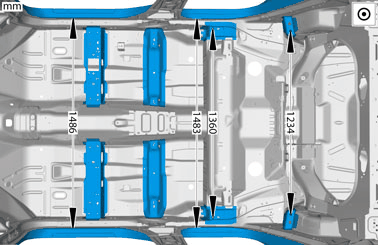

Fig 1: Side Body Dimensions And Measurement Points (1 Of 4)

Courtesy of VOLVO CARS CORPORATION

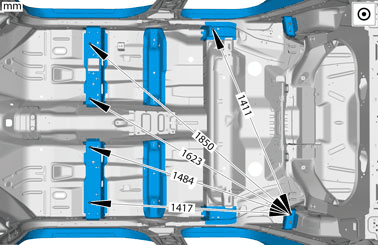

Fig 2: Side Body Dimensions And Measurement Points (2 Of 4)

Courtesy of VOLVO CARS CORPORATION

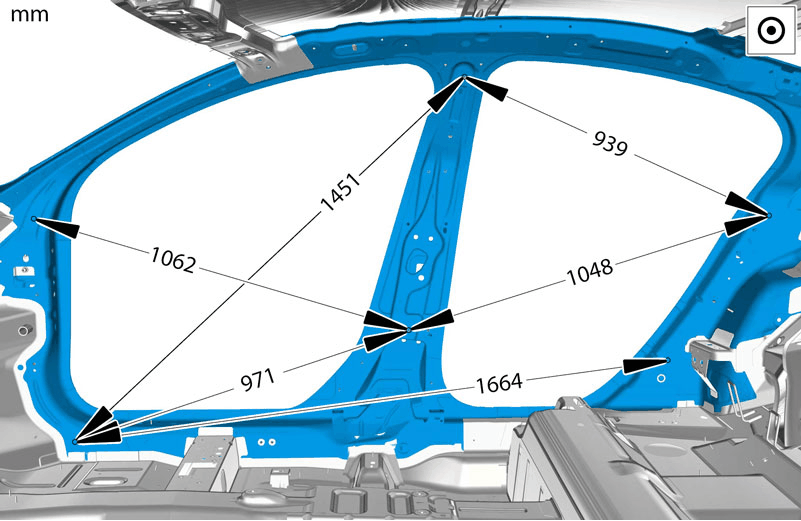

Fig 3: Side Body Dimensions And Measurement Points (3 Of 4)

Courtesy of VOLVO CARS CORPORATION

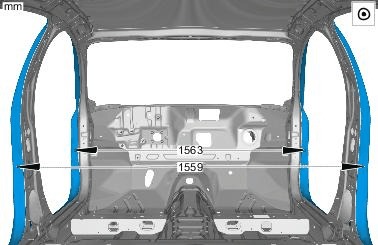

Fig 4: Side Body Dimensions And Measurement Points (4 Of 4)

Courtesy of VOLVO CARS CORPORATION
