Rear Fender [2016-2018]: Removal

See information on welding, general, refer to: WELDING, GENERAL

Remove the side section, exposing, refer to: SIDE SECTION, EXPOSING

Remove the rear section, exposing, refer to: REAR SECTION, EXPOSING

See information about door and lids, refer to: DOORS AND LIDS

See information about body sealant, sealing diagram, refer to: BODY SEAL, SEALING DIAGRAM

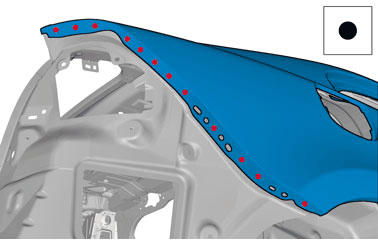

Courtesy of VOLVO CARS CORPORATION

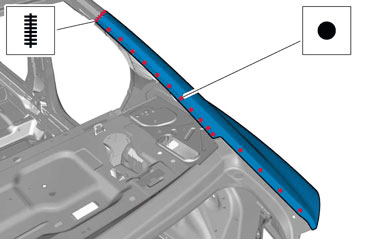

Courtesy of VOLVO CARS CORPORATION

Use:  Seal, 6817640

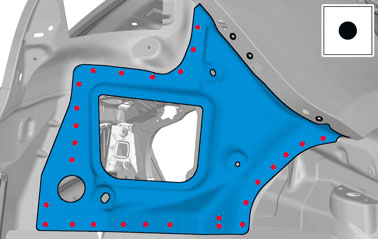

Courtesy of VOLVO CARS CORPORATION

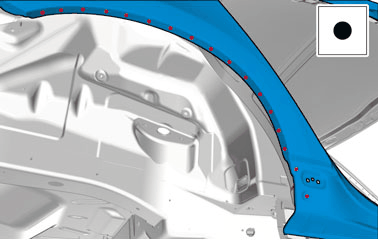

Courtesy of VOLVO CARS CORPORATION

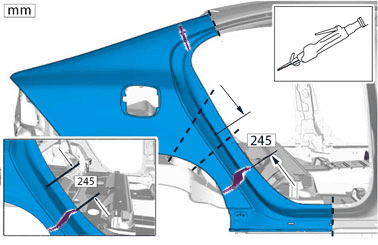

Courtesy of VOLVO CARS CORPORATION

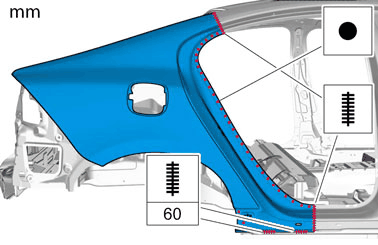

Courtesy of VOLVO CARS CORPORATION

See information about body sealant, sealing diagram, refer to: BODY SEAL, SEALING DIAGRAM

See information about corrosion protection, refer to: RUSTPROOFING

See information about paint, refer to: PAINT
