Plenum Cover [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the wiper arm, refer to: WIPER ARM

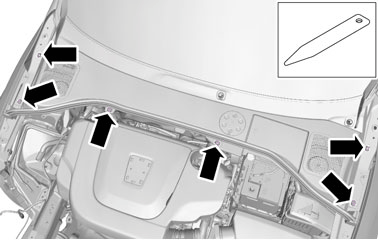

VEHICLES WITH R-DESIGN

Courtesy of VOLVO CARS CORPORATION

On both sides.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Torque: Strut and spring assembly to strut and spring assembly turret, 30Nm

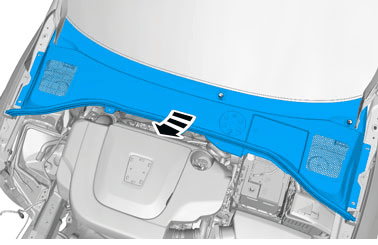

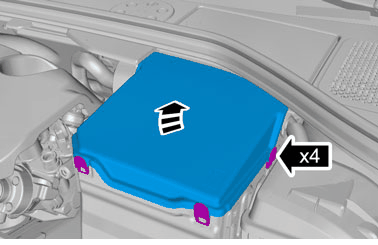

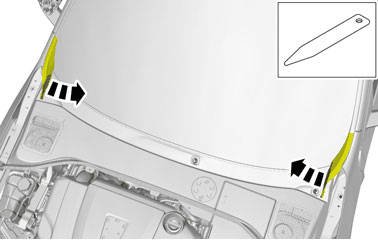

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

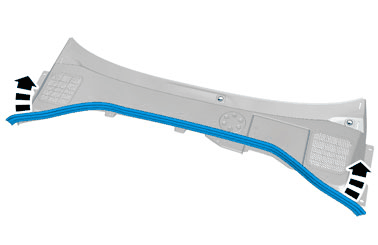

NOTE:

Make sure that the seal is correctly located.

Courtesy of VOLVO CARS CORPORATION
