Hood Latch [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove casing bumper front, refer to: COVER BUMPER FRONT

VEHICLES WITH ACTIVE GRILLE SHUTTER

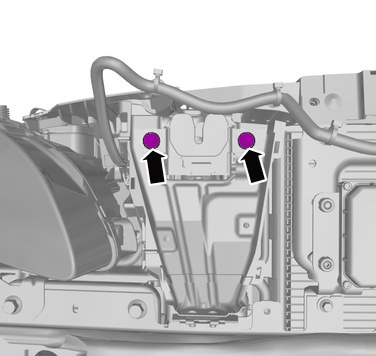

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

ALL VEHICLES

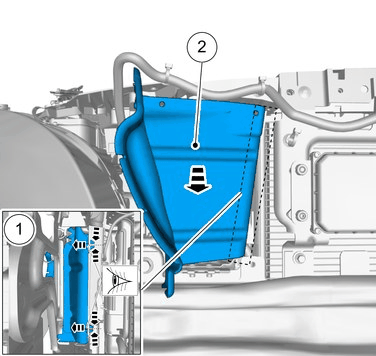

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the components.

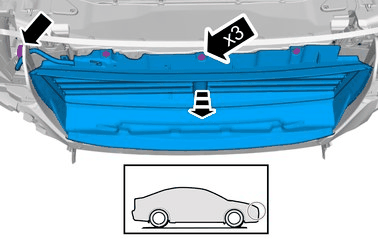

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

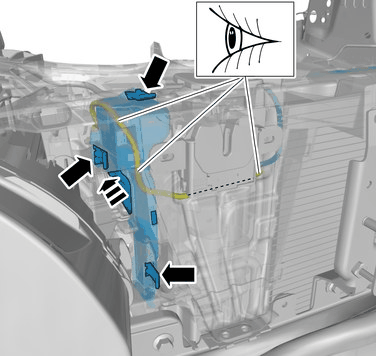

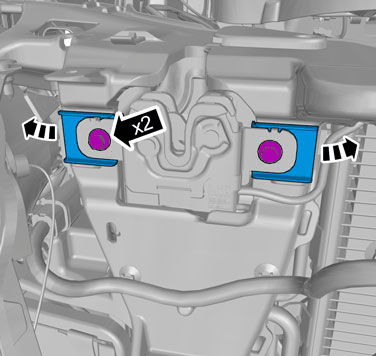

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

On both sides.

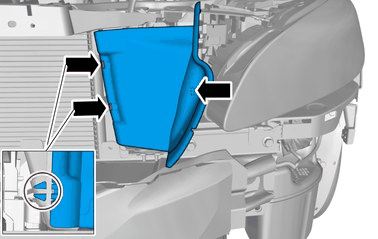

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

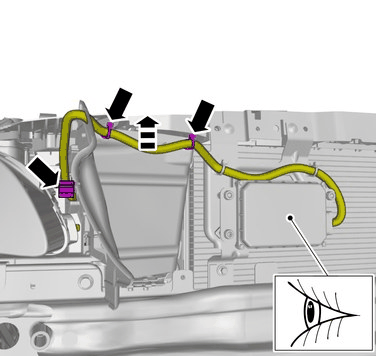

VEHICLES WITH PROXIMITY WARNING RADAR UNIT

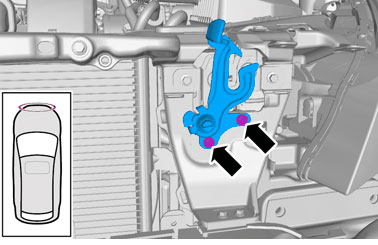

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care when handling the component.

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

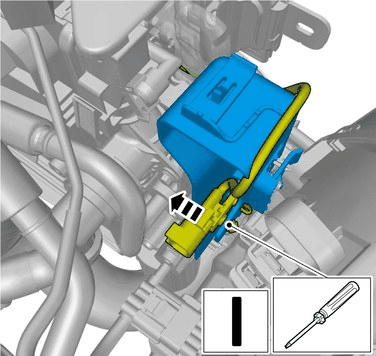

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Note the position of each cable.

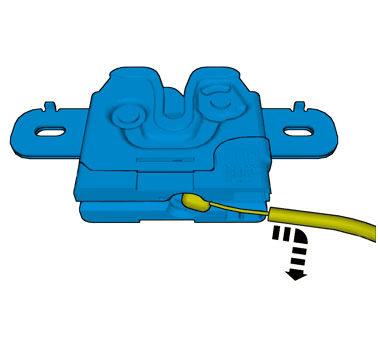

Courtesy of VOLVO CARS CORPORATION

Remove the clip.

Courtesy of VOLVO CARS CORPORATION
