Front Fender [2017-2018, B4204T11 | 2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the following items:

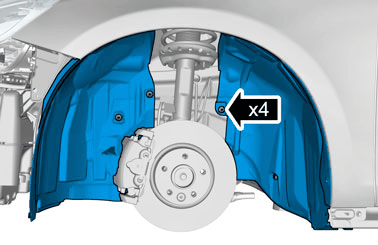

GLL174486Courtesy of VOLVO CARS CORPORATION

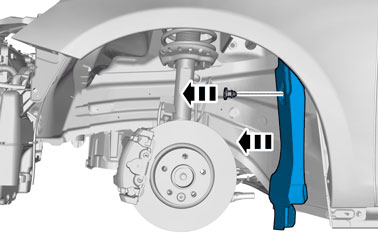

GLL174487Courtesy of VOLVO CARS CORPORATION

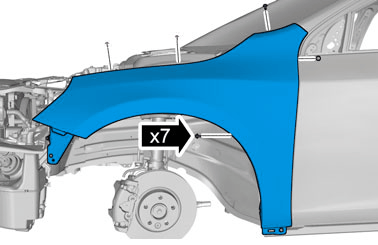

GLL174488Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Follow the instructions regarding corrosion protection, refer to: RUSTPROOFING
