Front End [2016-2018]: Removal

Remove casing bumper front, refer to: COVER BUMPER FRONT

Remove the headlamp, refer to: HEADLAMPS

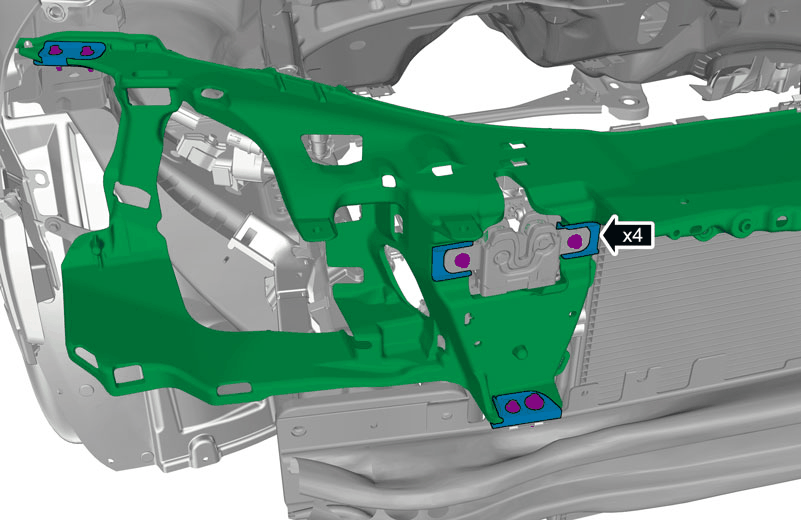

GLL178277Courtesy of VOLVO CARS CORPORATION

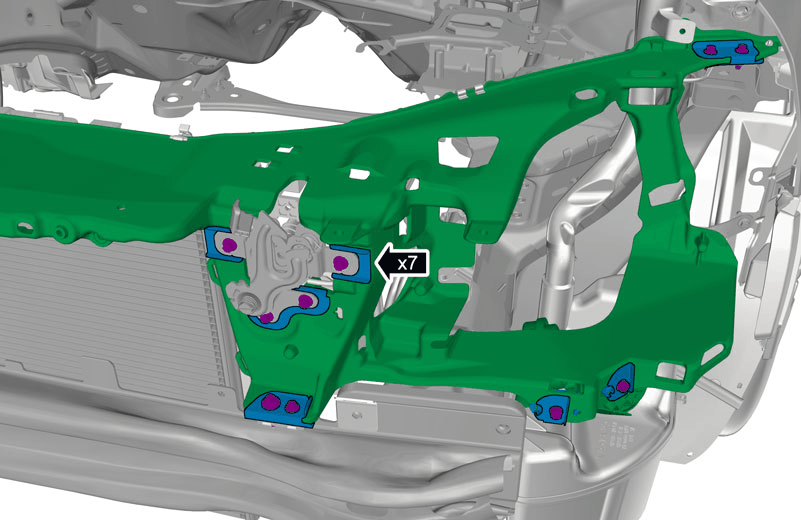

GLL178278Courtesy of VOLVO CARS CORPORATION
GLL1041020Courtesy of VOLVO CARS CORPORATION
