Control Lock Engine Hood [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

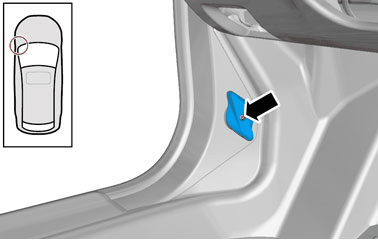

GLL173527Courtesy of VOLVO CARS CORPORATION

Remove sill molding front, refer to: FRONT SILL MOLDING

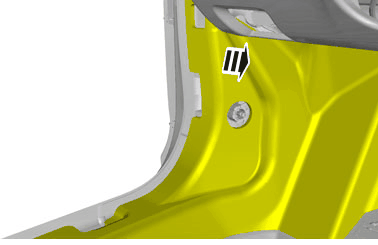

GLL173529Courtesy of VOLVO CARS CORPORATION

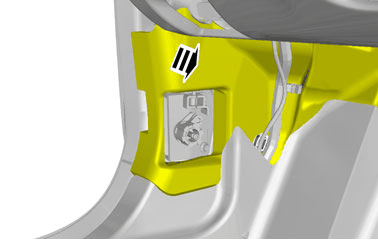

GLL173531Courtesy of VOLVO CARS CORPORATION

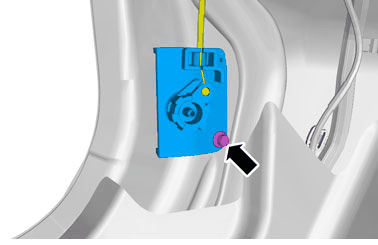

GLL173530Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm
