Side Member, Front [2016-2018]: Installation

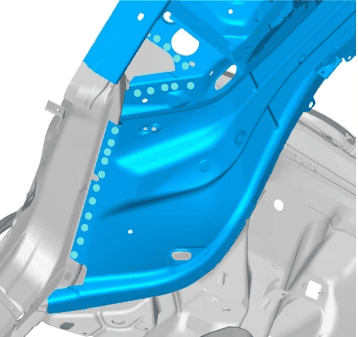

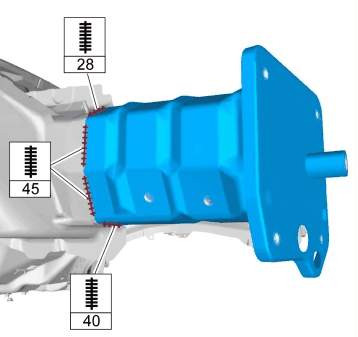

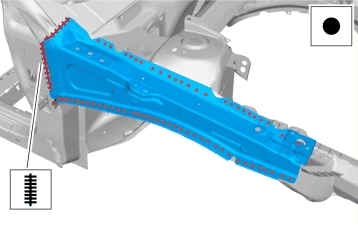

Fig 1: Front Side Member Installation Weld Measurements And Locations (2016-2018) (1 Of 6)

Courtesy of VOLVO CARS CORPORATION

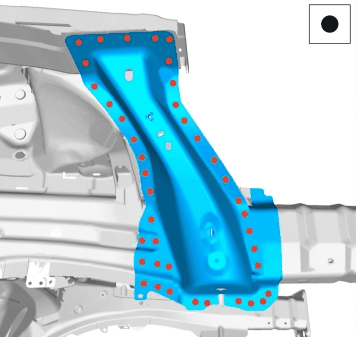

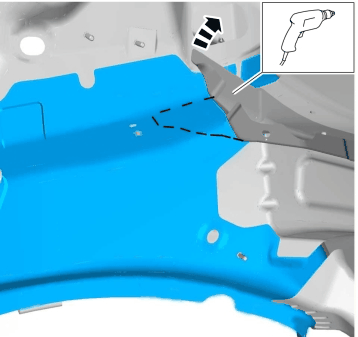

Fig 2: Front Side Member Installation Weld Measurements And Locations (2016-2018) (2 Of 6)

Courtesy of VOLVO CARS CORPORATION

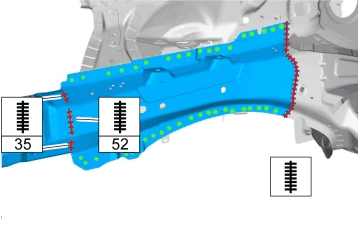

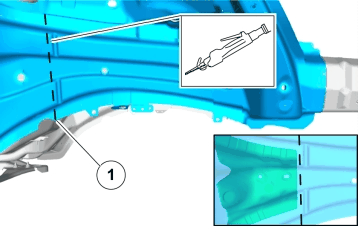

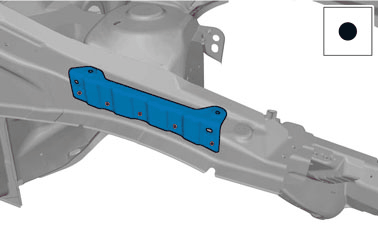

Fig 3: Front Side Member Installation Weld Measurements And Locations (2016-2018) (3 Of 6)

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

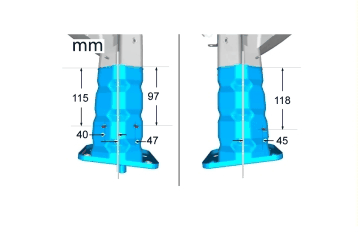

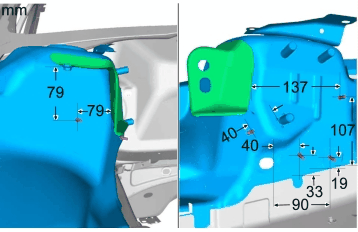

Fig 4: Front Side Member Installation Weld Measurements And Locations (2016-2018) (4 Of 6)

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

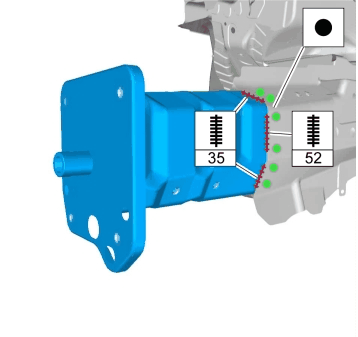

Fig 5: Front Side Member Installation Weld Measurements And Locations (2016-2018) (5 Of 6)

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

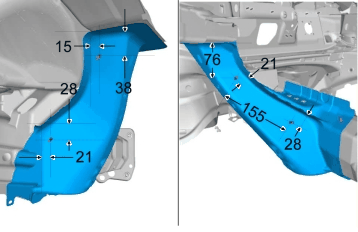

Fig 6: Front Side Member Installation Weld Measurements And Locations (2016-2018) (6 Of 6)

Courtesy of VOLVO CARS CORPORATION

Follow the instructions regarding body sealing, sealant schedule; See BODY SEAL, SEALING DIAGRAM .

Follow the instructions regarding corrosion protection; See RUSTPROOFING .

Install the front section, exposing; See FRONT SECTION, EXPOSING .
