Collision Member [2017, B4204T11]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the high voltage battery

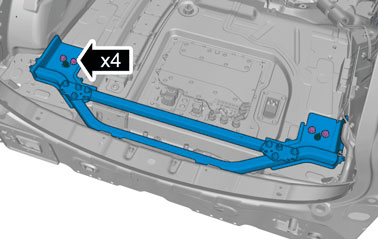

Fig 1: Collision Member Component Location (2017, B4204T11)
GLL1001297Courtesy of VOLVO CARS CORPORATION

Torque:  M12, 80Nm
