Body Sill Reinforcement [2016-2018]: Removal

See information on welding, general WELDING, GENERAL .

Remove the side section; See SIDE SECTION, EXPOSING .

Follow the instructions regarding body side; See BODY SIDE .

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

• A-pillar; See A-PILLAR  .
• B-pillar; See B-PILLAR .

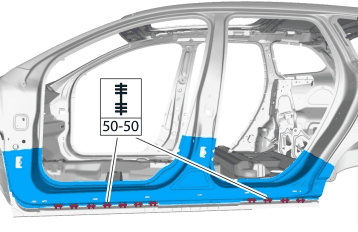

Fig 1: Body Sill Reinforcement Component Location (2016-2018)

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

See information about body sealant, sealing diagram BODY SEAL, SEALING DIAGRAM .

See information about corrosion protection RUSTPROOFING .
