B-Pillar [2016-2018]: Installation

Courtesy of VOLVO CARS CORPORATION

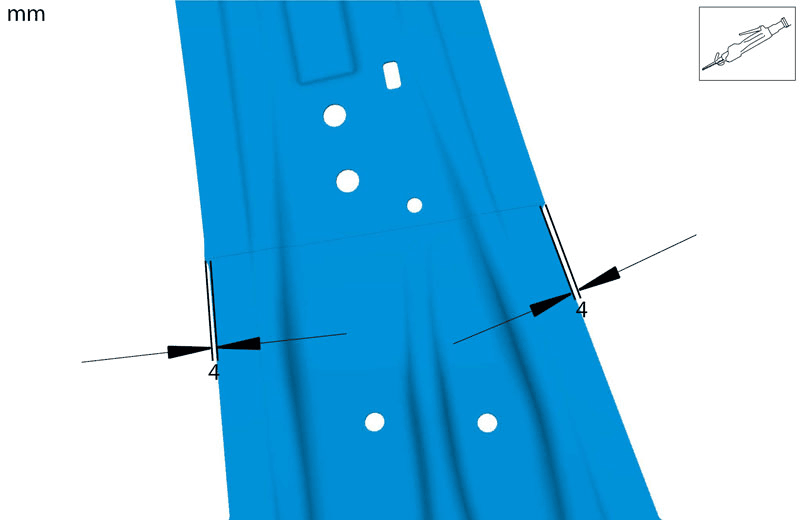

Fig 1: B Pillar Installation Cut Line Measurements And Locations (2016-2018) (1 Of 6)

Courtesy of VOLVO CARS CORPORATION

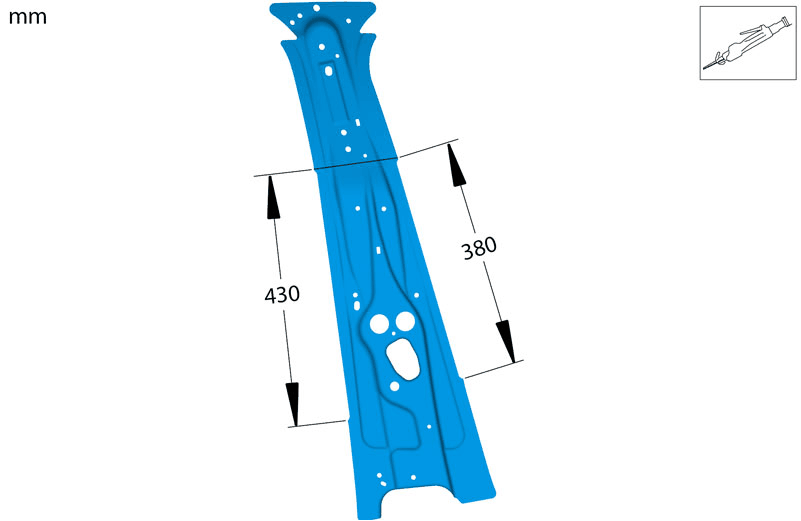

Fig 2: B Pillar Installation Cut Line Measurements And Locations (2016-2018) (2 Of 6)

Courtesy of VOLVO CARS CORPORATION

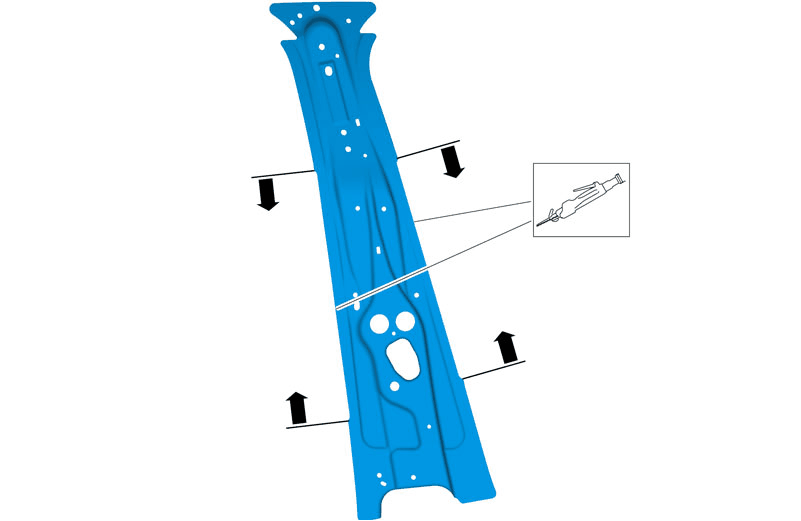

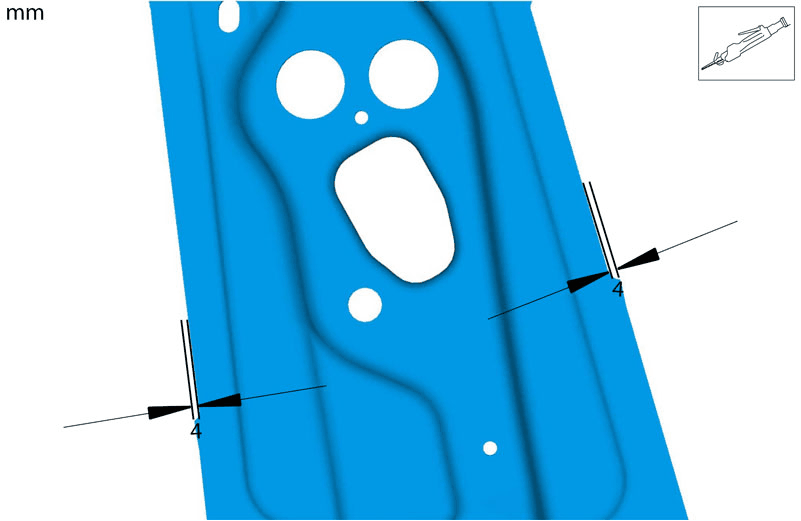

Fig 3: B Pillar Installation Cut Line Measurements And Locations (2016-2018) (3 Of 6)

Courtesy of VOLVO CARS CORPORATION

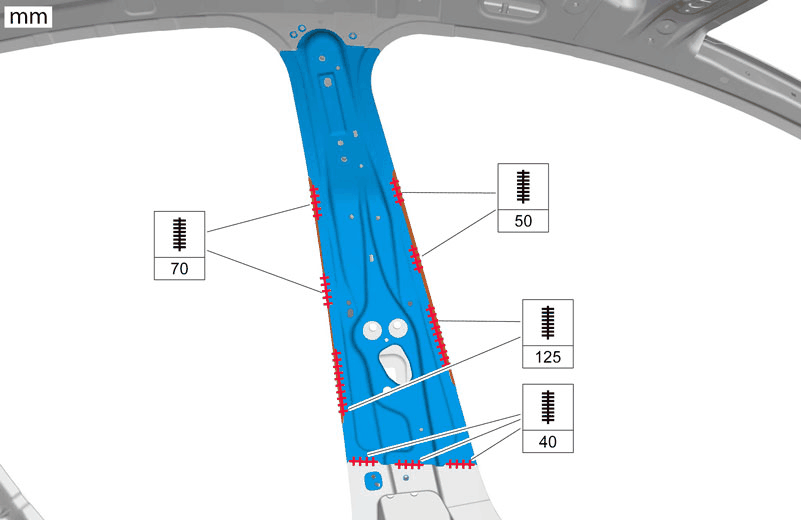

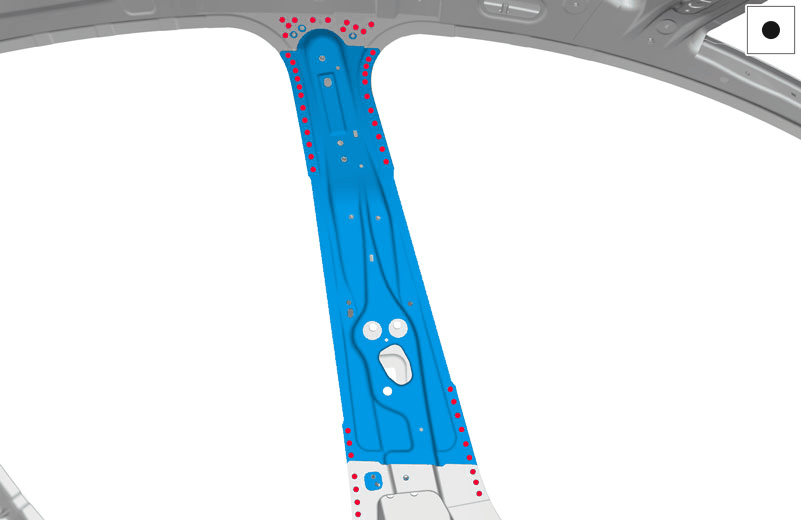

Fig 4: B Pillar Installation Weld Measurements And Locations (2016-2018) (4 Of 6)

Courtesy of VOLVO CARS CORPORATION

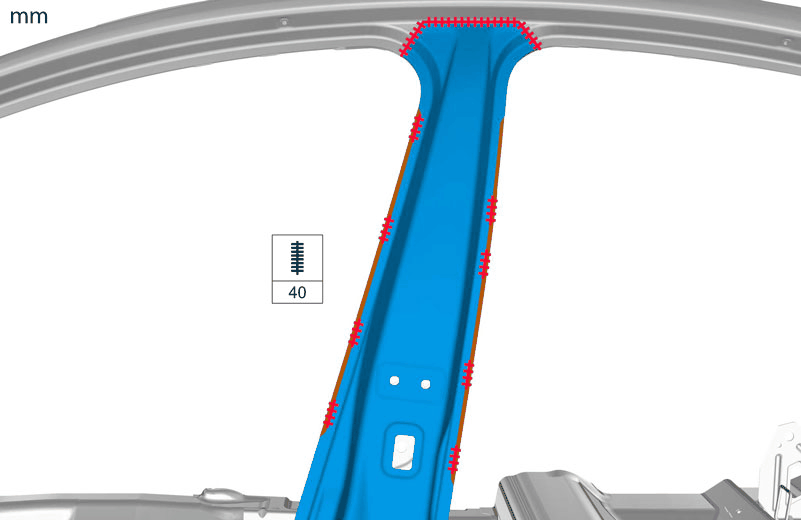

Fig 5: B Pillar Installation Weld Measurements And Locations (2016-2018) (5 Of 6)

Courtesy of VOLVO CARS CORPORATION

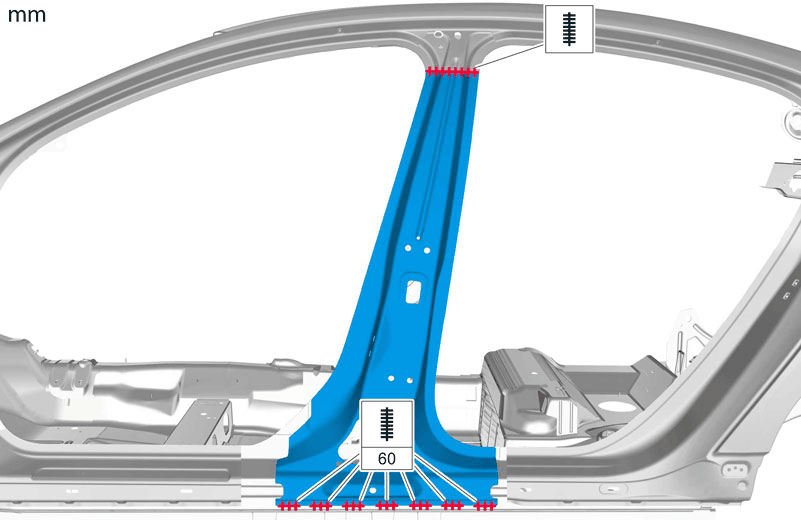

Fig 6: B Pillar Installation Weld Measurements And Locations (2016-2018) (6 Of 6)

Courtesy of VOLVO CARS CORPORATION

Use:  Seal, 6817640

Courtesy of VOLVO CARS CORPORATION

Follow the instructions regarding body sealing, sealant schedule; See BODY SEAL, SEALING DIAGRAM .

Assemble side, exposing; See SIDE SECTION, EXPOSING .

Follow the instructions regarding corrosion protection; See RUSTPROOFING

See information about paint PAINT .
