Parking Brake Module [2018]: Removal

GLL166009Courtesy of VOLVO CARS CORPORATION

Remove left side, side panel cargo space, refer to: SIDE PANEL LOADSPACE

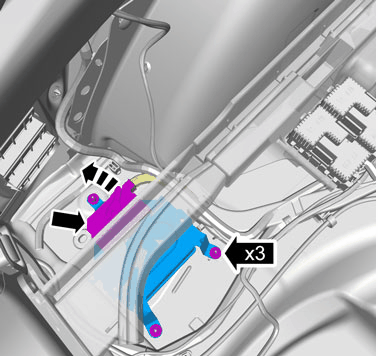

GLL176194Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

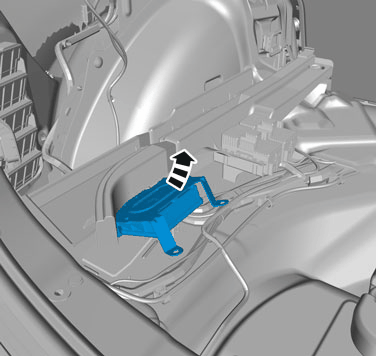

GLL176195Courtesy of VOLVO CARS CORPORATION

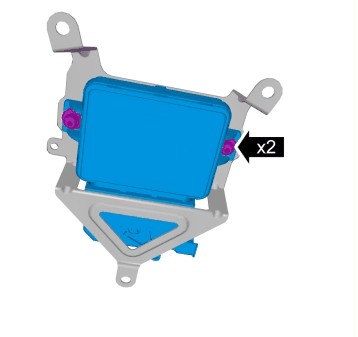

GLL166220Courtesy of VOLVO CARS CORPORATION
