Parking Brake Module [2017 | 2016, B5254T12]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL166009Courtesy of VOLVO CARS CORPORATION

Remove left side, side panel cargo space, refer to: SIDE PANEL LOADSPACE

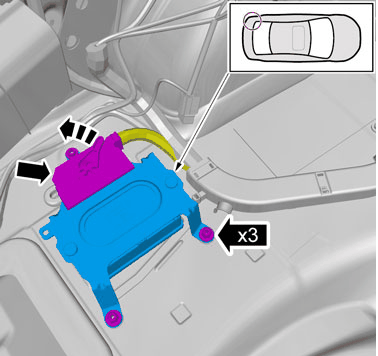

GLL172605Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

GLL166220Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm
