Brake Caliper Motor, Parking Brake [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Activate service mode according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/PBM/Activating and service

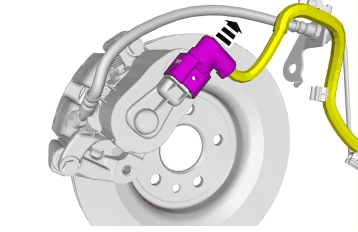

GLL164986Courtesy of VOLVO CARS CORPORATION

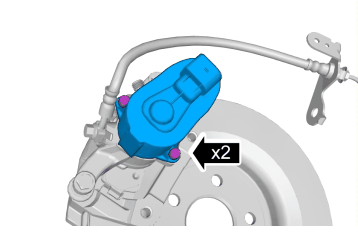

GLL164987Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm
