Rear Brake Disc [2017-2018, B4204T11 | 2016, B5254T12]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Perform parking brake, adjusting, refer to: PARKING BRAKE, ADJUSTING
Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY
Remove the wheel, refer to: WHEELS
WARNING:
Make sure that no load is placed on the brake hose.

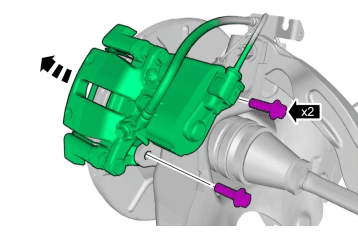

Torque: Mount rear brake caliper, 110Nm
Torque: Rear brake disc to wheel hub, 35Nm
