Rear Brake Caliper [2018, B4204T11 | 2017, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Perform parking brake, adjusting, refer to: PARKING BRAKE, ADJUSTING

Follow instructions for lifting points body frame, refer to: JACKING POINTS BODY

Remove rear wheel, refer to: WHEELS

Follow instructions about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM

GLL155249Courtesy of VOLVO CARS CORPORATION

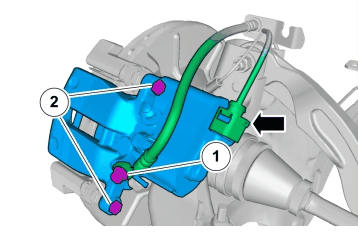

GLL155354Courtesy of VOLVO CARS CORPORATION

Remove the following items:

  1. Torque:  Brake hose to rear brake caliper, 46Nm
  2. Torque:  Slide rail rear brake caliper, 35Nm
