Front Brake Caliper [2018, B4204T11 | 2017, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

See information about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM

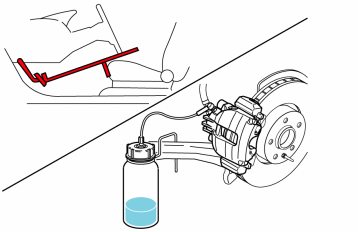

GLL155249Courtesy of VOLVO CARS CORPORATION

Remove brake pads front, refer to: BRAKE PADS, FRONT

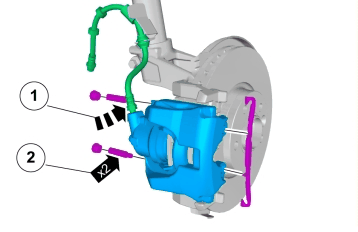

GLL155368Courtesy of VOLVO CARS CORPORATION

Remove the following items:

  1. Torque:  Brake hose to front brake caliper, 18Nm
  2. Torque:  Slide rail front brake caliper, 28Nm

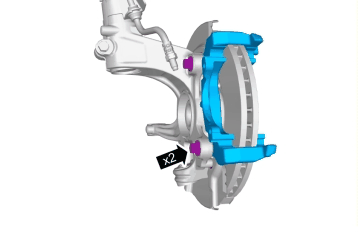

GLL155369Courtesy of VOLVO CARS CORPORATION

Torque:  Mount front brake caliper, 200Nm
