Brake Pads Rear [2017-2018 | 2016, B5254T12, TF-80SC AWD]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Follow instructions about safety information brake system, refer to: SAFETY INFORMATION BRAKE SYSTEM
Activate service mode according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/PBM/Activating and service
Remove rear wheel, refer to: WHEELS
WARNING:
Make sure that no load is placed on the brake hose.
Torque: Slide rail rear brake caliper, 35Nm

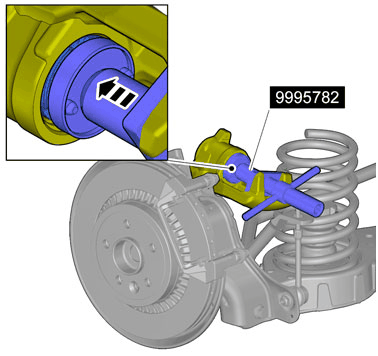

NOTE:
Make sure that the correct side of the tool (flat side) is facing the brake piston. The brake piston must be pushed in, not rotated.
