Windshield [2016-2018]: Installation

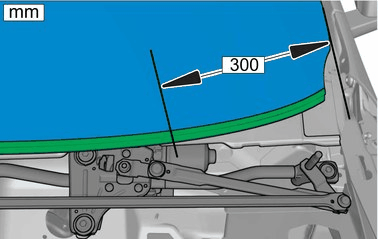

Courtesy of VOLVO CARS CORPORATION

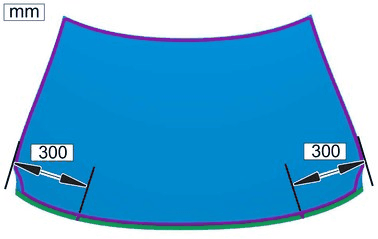

Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 4133

Use:  H Cleaner, 31375637

Use:  Primer, 1161824

See information about bonded windows, general safety information, refer to: BONDED WINDOW, GENERAL SAFETY INFORMATION

See information about bonded windows, general information, refer to: BONDED WINDOW GENERAL, INFORMATION

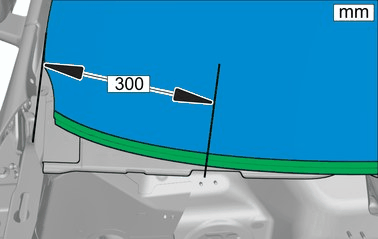

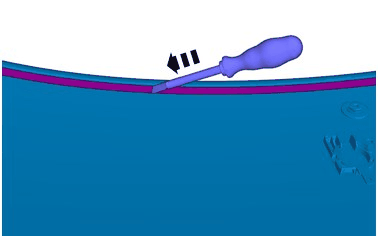

Courtesy of VOLVO CARS CORPORATION

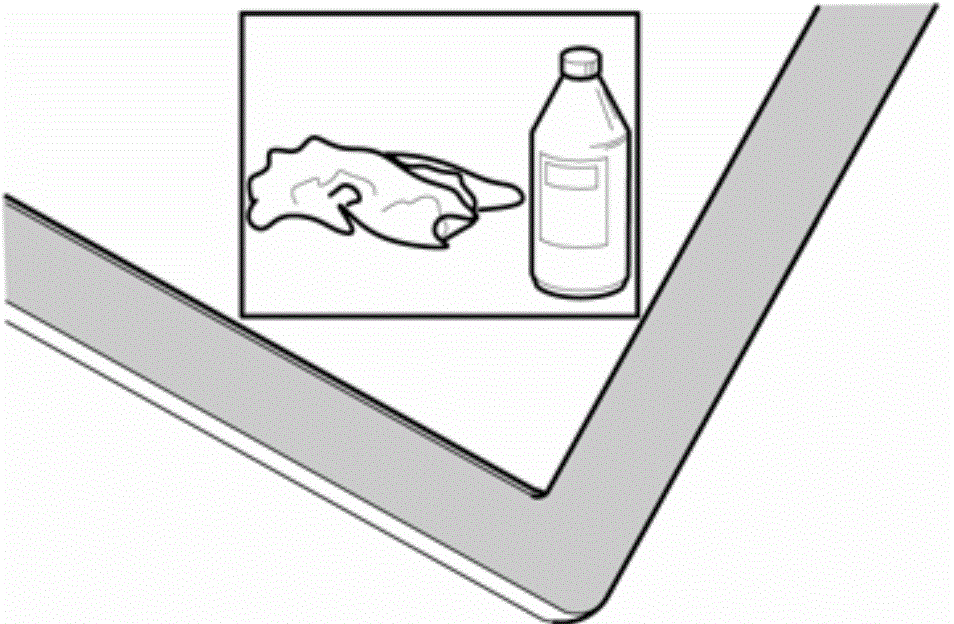

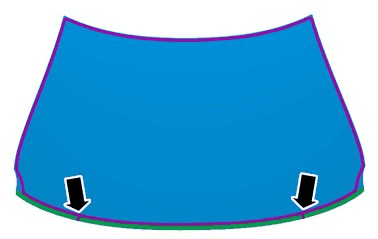

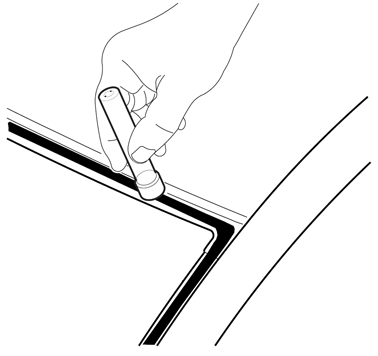

Use:  H Cleaner, 31375637

Courtesy of VOLVO CARS CORPORATION

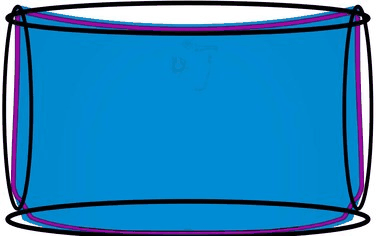

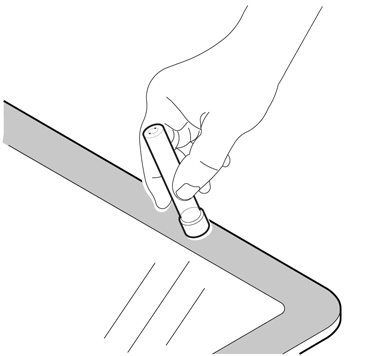

Use:  H Cleaner, 31375637

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

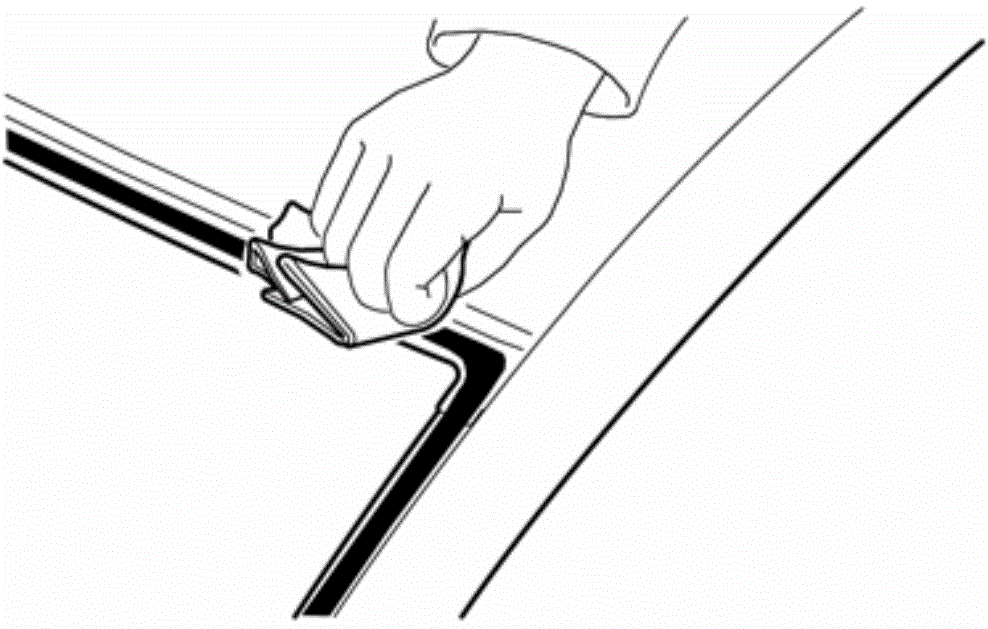

Use:  Activator

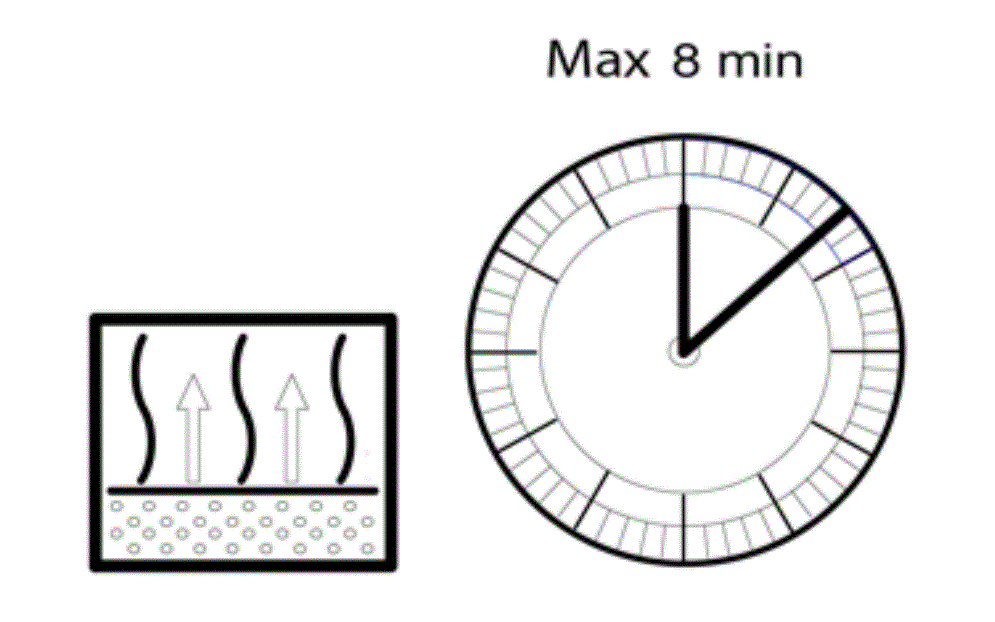

Wipe dry.

Courtesy of VOLVO CARS CORPORATION

Use:  Activator

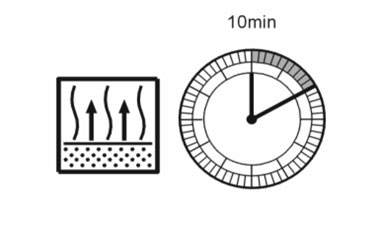

Wipe dry.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

1. Use:  Mixer nozzle, window, 32244509
2. Use:  Mixer nozzle, body, 32244510

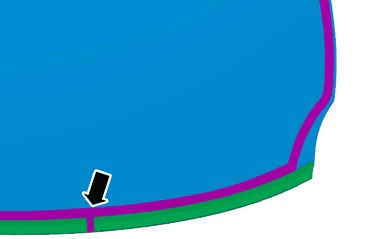

Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 4259  , Special Tool: 981 4260   and Special Tool: 981 4261

Use:  Adhesive kit, 32244164

When applied, hold the glue gun according to the nozzle angle.

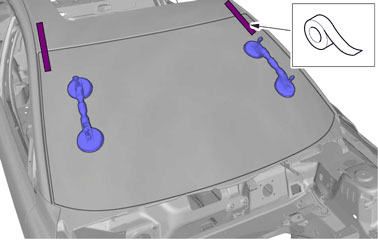

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Install the following items:

• plenum cover, refer to: PLENUM COVER
• A-Pillar Molding, refer to: A-PILLAR MOLDING
• Rain sensor, refer to: RAIN SENSOR
• Closing Velocity Module (CVM), refer to: CLOSING VELOCITY MODULE
• Camera collision warning, refer to: CAMERA COLLISION WARNING
• inner rear view mirror, refer to: INNER REAR VIEW MIRROR
• A-pillar trim panel, refer to: A-PILLAR TRIM PANEL

Calibrate camera according to: DIAGNOSTICS/CAR COMMUNICATION/Advanced/FSM/Calibrating radar and camera
