Side Scuff Plate [2016-2018]: Removal
 Courtesy of VOLVO CARS CORPORATION
|

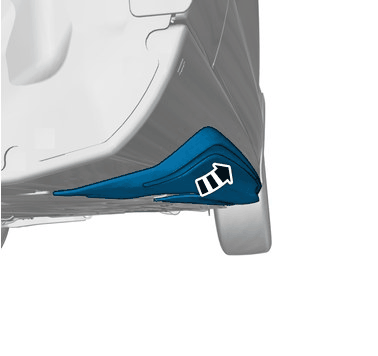

On both sides.
 Courtesy of VOLVO CARS CORPORATION
|

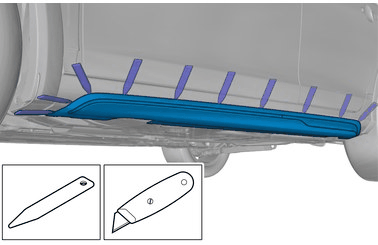

Remove the clips.
 Courtesy of VOLVO CARS CORPORATION
|
NOTE:

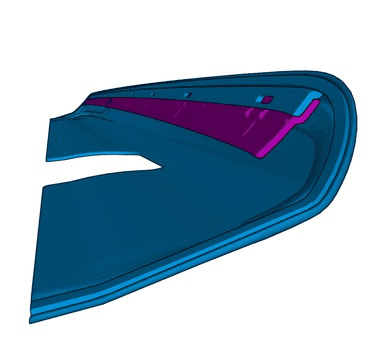

The graphic shows the back of the component before removal.
 Courtesy of VOLVO CARS CORPORATION
|

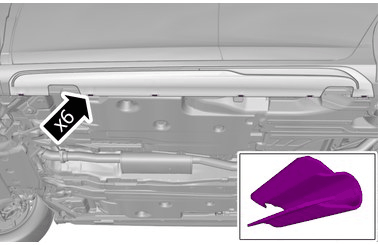

Remove the part carefully
 Courtesy of VOLVO CARS CORPORATION
|
NOTE:
The graphic shows the back of the component before removal.
 Courtesy of VOLVO CARS CORPORATION
|

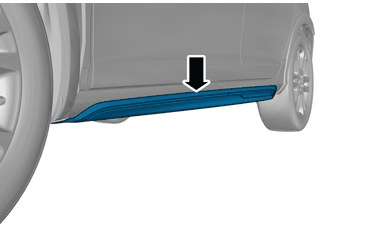

Remove the marked part.
Use hands only.
