Side Scuff Plate [2016-2018]: Installation

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

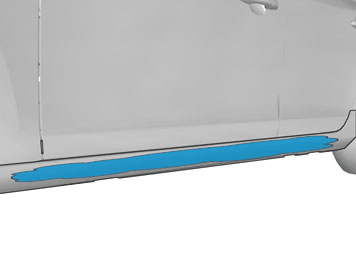

Clean the surface.

Use:  Cleaning agent, 1161721

Courtesy of VOLVO CARS CORPORATION

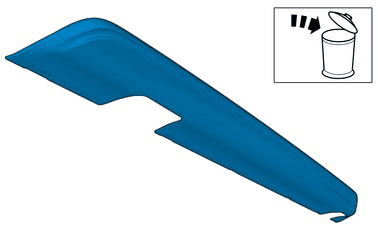

Fold the protective film forward

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

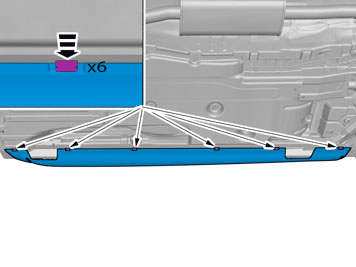

Install the clip(s).

Courtesy of VOLVO CARS CORPORATION

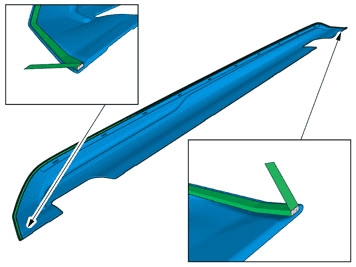

Remove the protective film.

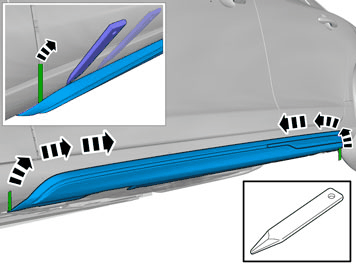

Use:  Interior trim remover

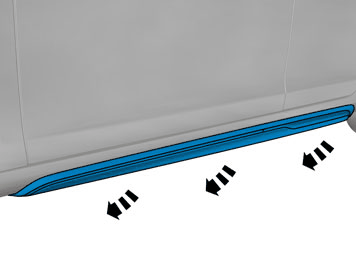

HINT: Press and apply pressure to the part over the tape for at least 20 seconds.
