Rear Fender Widener [2016-2018]: Removal

On both sides.

GLL1009176

Courtesy of VOLVO CARS CORPORATION

NOTE:

Orientation view

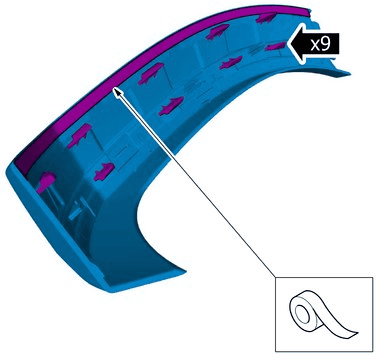

GLL1031109

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

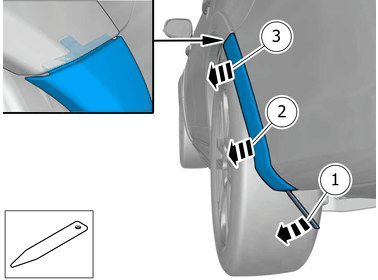

GLL1041026

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1037031

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1000678

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

GLL1024742

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

GLL1031183

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
