Rear Fender Widener [2016-2018]: Installation

Follow the instructions regarding components with double-sided adhesive tape, refer to: COMPONENTS WITH DOUBLE-SIDED TAPE

Courtesy of VOLVO CARS CORPORATION

NOTE:

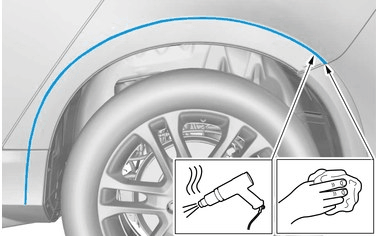

Make sure that the component is clean and free of foreign material.

Use: Cleaning agent, 1161721

Use: Primer, 1161727

Courtesy of VOLVO CARS CORPORATION

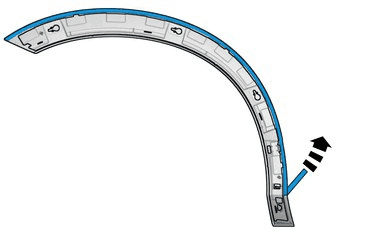

Fold the protective film forward

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

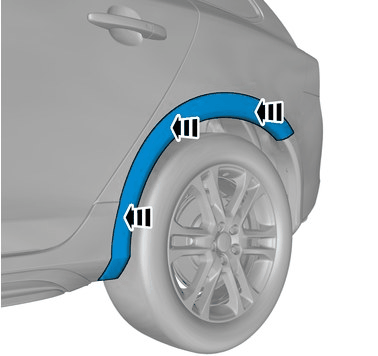

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the tape is fixed to the surface.

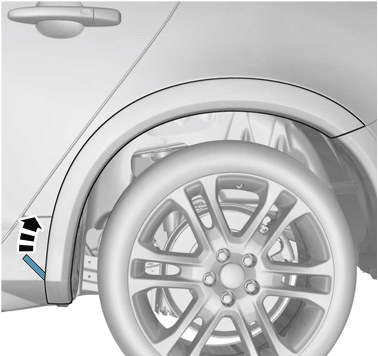

Remove the protective film.

HINT: Press and apply pressure to the part over the tape for at least 20 seconds.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that a new component is installed.

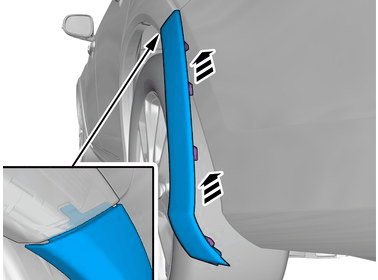

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the tape is fixed to the surface.

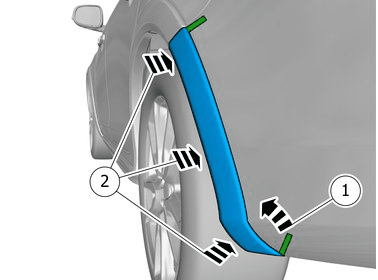

Remove the protective film.

HINT: Press and apply pressure to the part over the tape for at least 20 seconds.

NOTE:

Make sure that the customer is advised not to wash the vehicle within the next 72 hours.

To install, reverse the removal procedure.
