Front Fender Widener [2016-2018]: Removal

On both sides.

Courtesy of VOLVO CARS CORPORATION

NOTE:

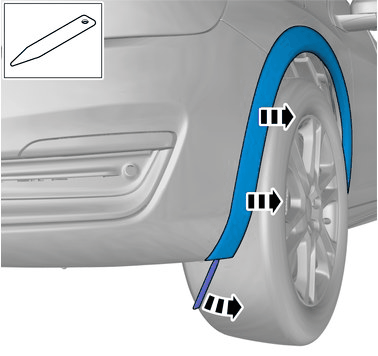

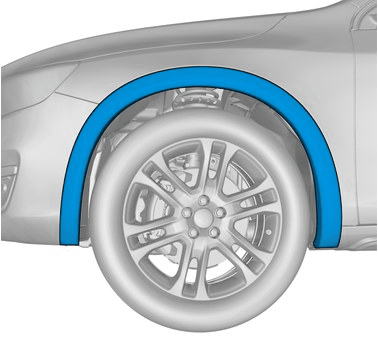

Orientation view

Courtesy of VOLVO CARS CORPORATION

NOTE:

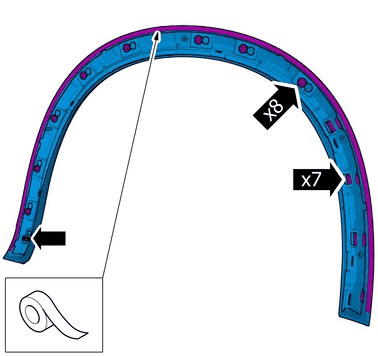

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

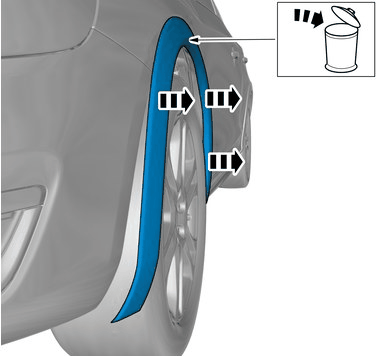

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
