Front Fender Widener [2016-2018]: Installation

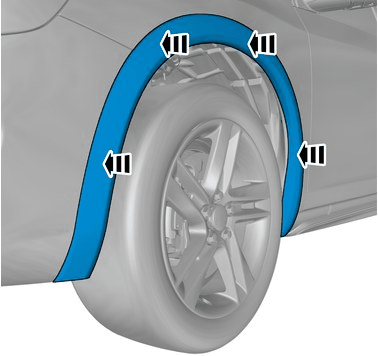

NOTE:

Make sure that a new component is installed.

Follow the instructions regarding components with double-sided adhesive tape, refer to: COMPONENTS WITH DOUBLE-SIDED TAPE

Courtesy of VOLVO CARS CORPORATION

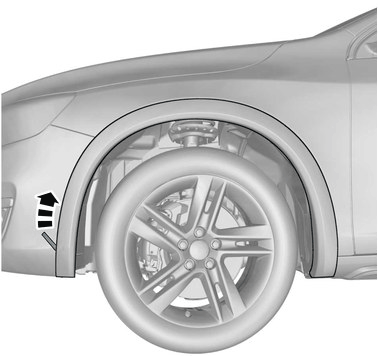

NOTE:

Make sure that the mating faces are clean and free of foreign material.

Use: Cleaning agent, 1161721

Use: Primer, 1161727

Courtesy of VOLVO CARS CORPORATION

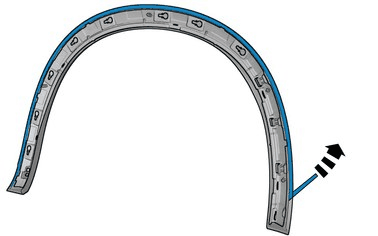

Fold the protective film forward

Courtesy of VOLVO CARS CORPORATION

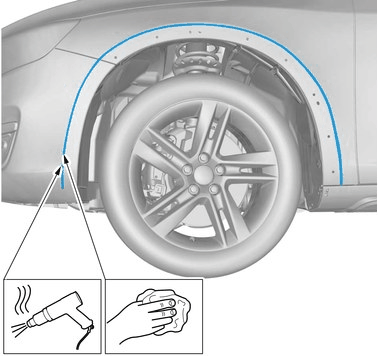

Install the marked component.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Ensure that the tape is fixed to the surface.

Remove the protective film.

NOTE:

Make sure that the customer is advised not to wash the vehicle within the next 72 hours.
