General Information

WARNING:

Before using the product, make sure to read and understand the Material Safety Data Sheet supplied by the manufacturer or supplier.

WARNING:

Wear safety goggles and protective gloves.

NOTE:

Always follow the relevant supplier's recommendations.

NOTE:

Do not mix products from different suppliers.

See information about bonded windows, general safety information, refer to: BONDED WINDOW, GENERAL SAFETY INFORMATION

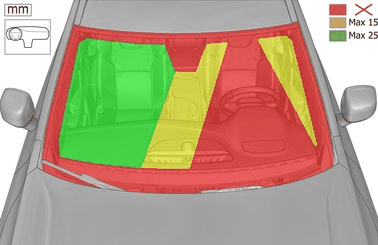

GLL1031231

Courtesy of VOLVO CARS CORPORATION

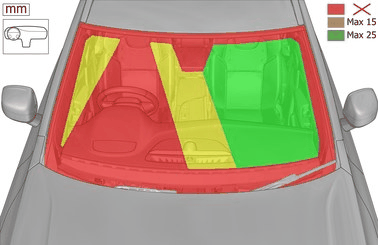

GLL1015466

Courtesy of VOLVO CARS CORPORATION

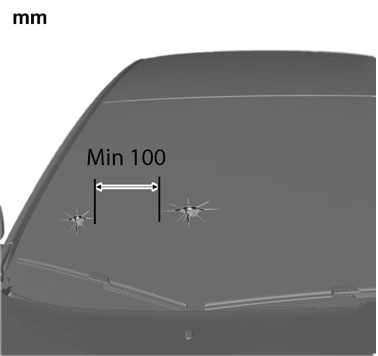

GLL179219

Courtesy of VOLVO CARS CORPORATION

Minimum distance between damaged areas in the pane of glass is 100 mm.

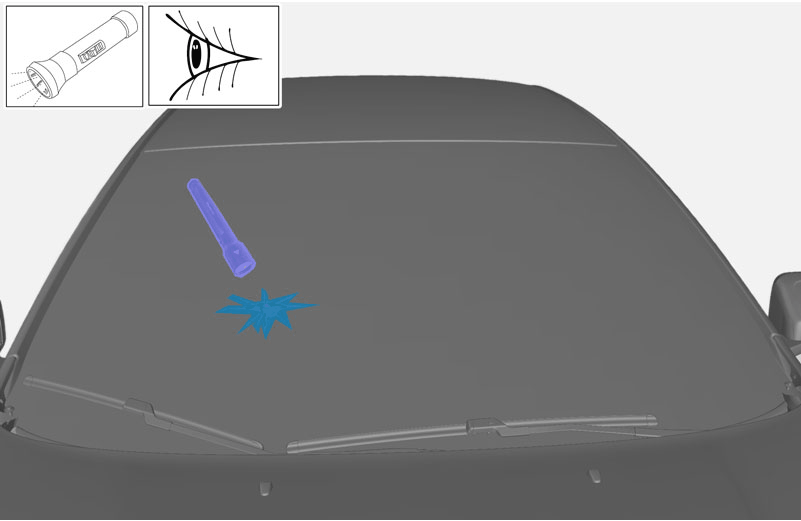

GLL179216

Courtesy of VOLVO CARS CORPORATION

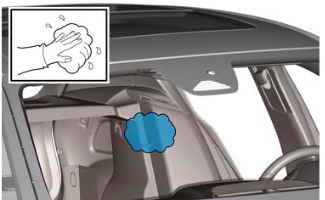

G00603980

Courtesy of VOLVO CARS CORPORATION

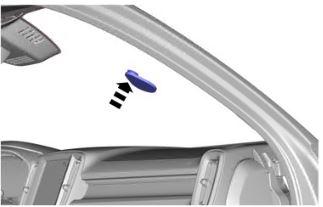

G00603981

Courtesy of VOLVO CARS CORPORATION

G00603982

Courtesy of VOLVO CARS CORPORATION

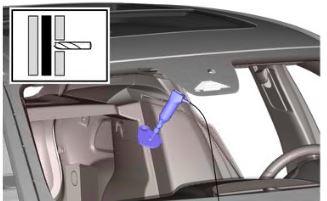

G00603983

Courtesy of VOLVO CARS CORPORATION

Drill first layer only

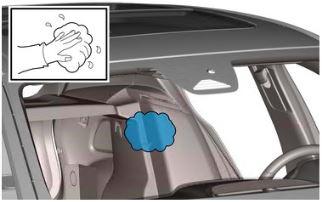

G00603984

Courtesy of VOLVO CARS CORPORATION

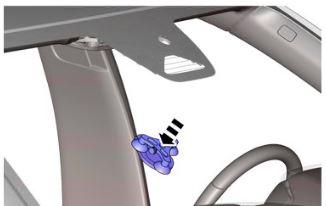

G00603985

Courtesy of VOLVO CARS CORPORATION

Center the tool and apply resin filler according to the manufacturer's instructions.

G00603986

Courtesy of VOLVO CARS CORPORATION

G00603987

Courtesy of VOLVO CARS CORPORATION

G00603988

Courtesy of VOLVO CARS CORPORATION

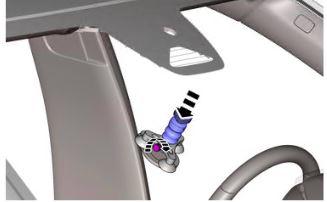

G00603989

Courtesy of VOLVO CARS CORPORATION

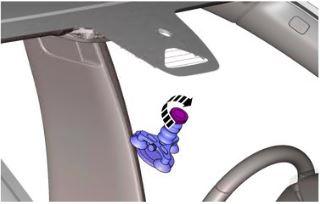

G00603990

Courtesy of VOLVO CARS CORPORATION

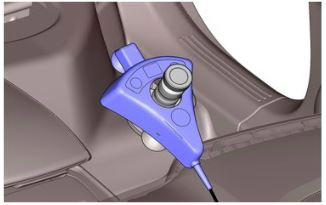

G00603991

Courtesy of VOLVO CARS CORPORATION

Use UV light to cure the resin filler.

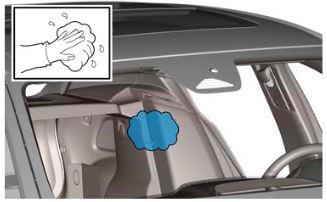

G00603992

Courtesy of VOLVO CARS CORPORATION

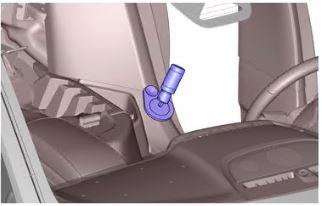

G00603993

Courtesy of VOLVO CARS CORPORATION

Apply resin filler directly to the damaged area. Apply a plastic film to keep the resin filler in place.

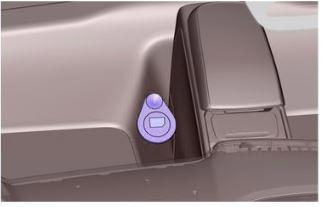

G00603994

Courtesy of VOLVO CARS CORPORATION

Apply resin filler directly to the damaged area. Apply a plastic film to keep the resin filler in place.

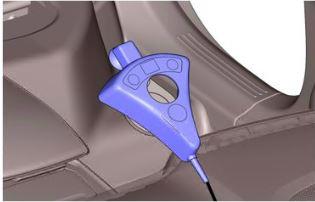

G00603995

Courtesy of VOLVO CARS CORPORATION

Use UV light to cure the resin filler.

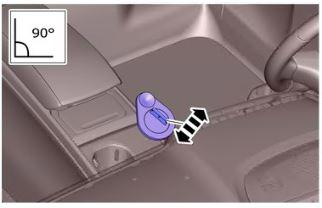

G00603996

Courtesy of VOLVO CARS CORPORATION

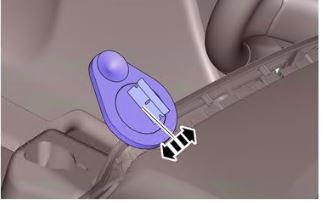

G00603997

Courtesy of VOLVO CARS CORPORATION

Polish with polish.
