Luggage Compartment Lid [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the following items:

External handle, luggage compartment lid, refer to: EXTERNAL HANDLE, LUGGAGE COMPARTMENT LID
Door latch, luggage compartment lid, refer to: DOOR LATCH, LUGGAGE COMPARTMENT LID

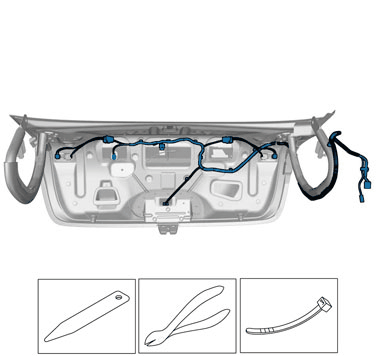

Courtesy of VOLVO CARS CORPORATION

On both sides.

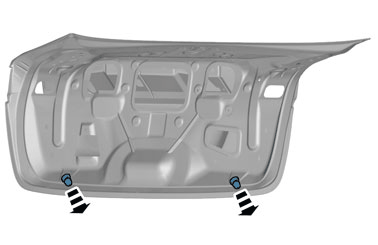

Courtesy of VOLVO CARS CORPORATION

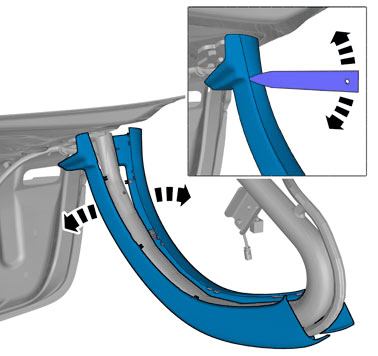

Courtesy of VOLVO CARS CORPORATION

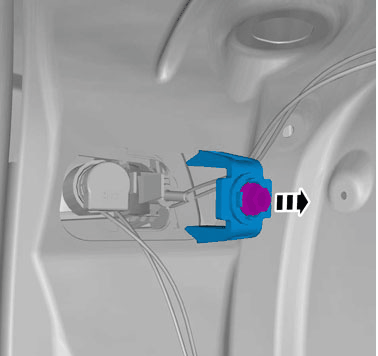

Courtesy of VOLVO CARS CORPORATION

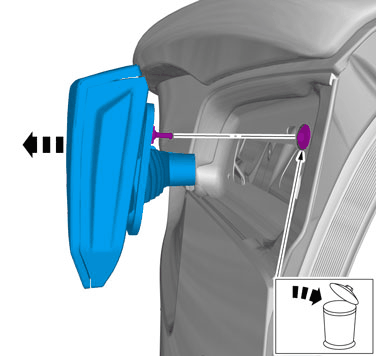

Courtesy of VOLVO CARS CORPORATION

On both sides.

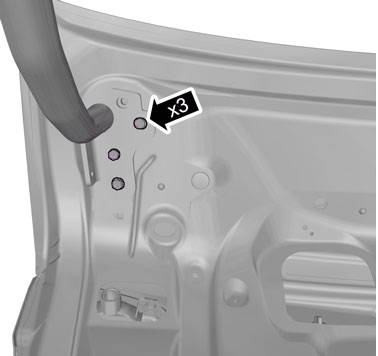

Courtesy of VOLVO CARS CORPORATION

Torque: M8, 24Nm

On both sides.
