Seat Track Front Seat [2016-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the following items:
- Front seat, refer to: FRONT SEAT
- Front safety belt buckle, refer to: FRONT SAFETY BELT BUCKLE
- Motor, seat position adjustment, refer to: MOTOR, SEAT POSITION ADJUSTMENT
On both sides.

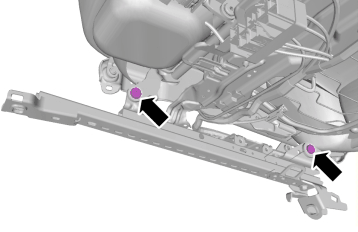

Torque: M8, 24Nm

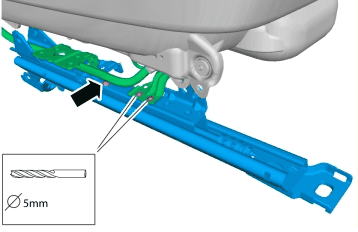

Perform removal pop rivet, refer to: REMOVING RIVETS
On both sides.
