Rear Seat Backrest [2016-2018]: Removal

Remove the following items:

• side pad, refer to: SIDE PAD
• Center armrest rear, refer to: CENTER ARMREST REAR

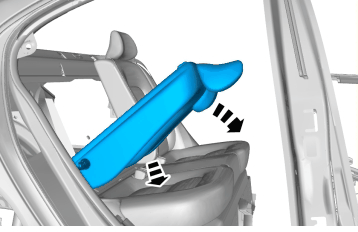

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

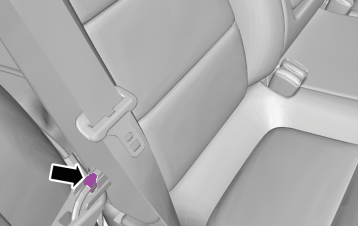

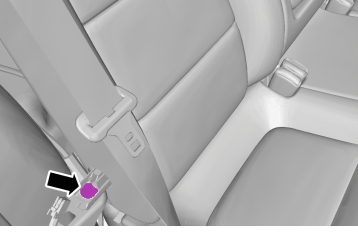

Torque:  Rear seat backrest to body, 40Nm

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

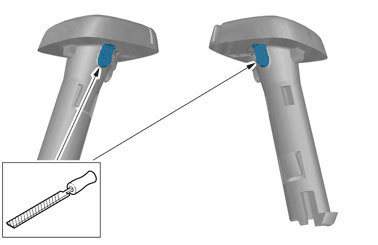

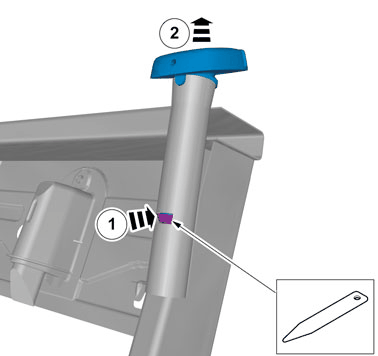

• middle head restraint, refer to: UPHOLSTERY MIDDLE HEAD RESTRAINT REAR
• outer head restraint, refer to: UPHOLSTERY OUTER HEAD RESTRAINT REAR

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
