Removal And Installation

Courtesy of VOLVO CARS CORPORATION

Remove the following items:

• Lighting, internal front, refer to: LIGHTING, INTERNAL FRONT
• Sun visor, refer to: SUN VISOR
• Rear interior light, refer to: REAR INTERIOR LIGHT
• A-pillar trim panel, refer to: A-PILLAR TRIM PANEL
• B-pillar trim panel, refer to: B-PILLAR TRIM PANEL
• C-pillar trim panel, refer to: C-PILLAR TRIM PANEL

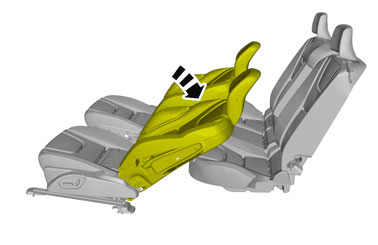

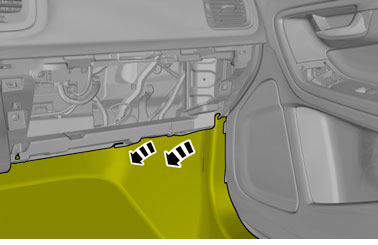

• the glove compartment, refer to: GLOVE COMPARTMENT
• front sill molding, refer to: FRONT SILL MOLDING
• High mounted stop lamp.

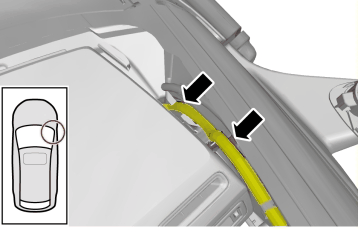

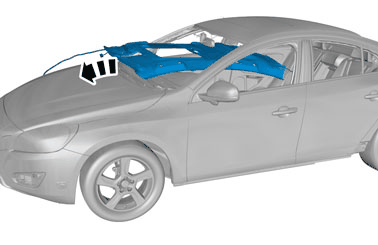

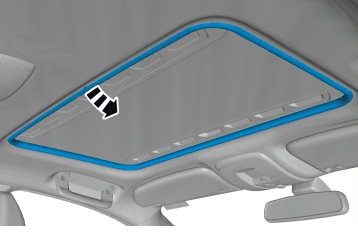

VEHICLES WITH ROOF OPENING PANEL

Courtesy of VOLVO CARS CORPORATION

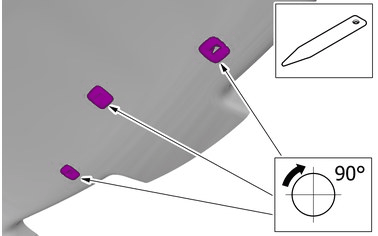

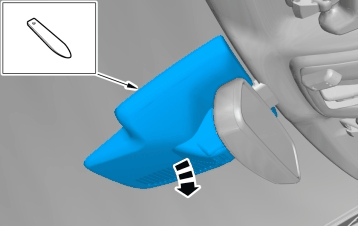

ALL VEHICLES

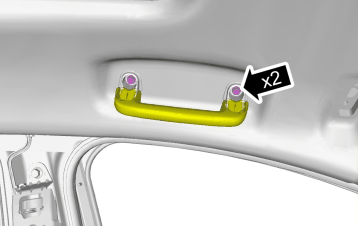

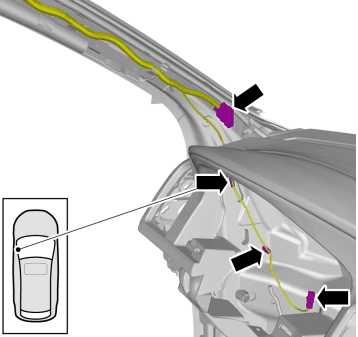

Courtesy of VOLVO CARS CORPORATION

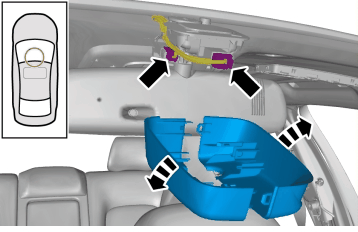

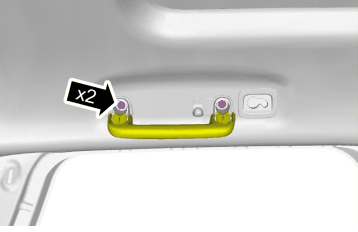

Courtesy of VOLVO CARS CORPORATION

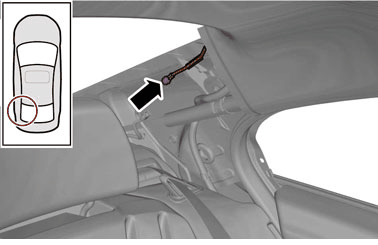

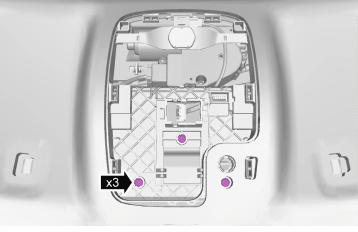

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

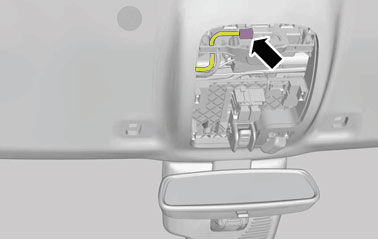

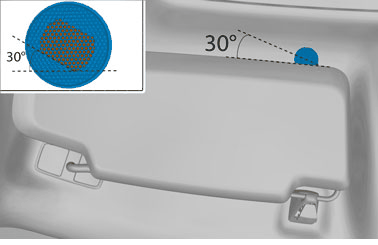

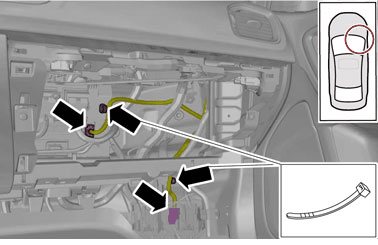

VEHICLES WITH HEADLINER CELLULAR PHONE MICROPHONE

Courtesy of VOLVO CARS CORPORATION

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

On both sides.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

Remove windshield, refer to: WINDSHIELD

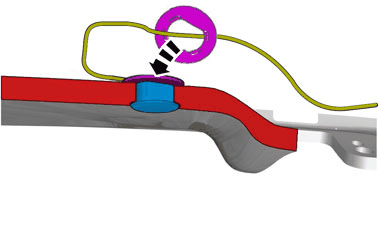

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

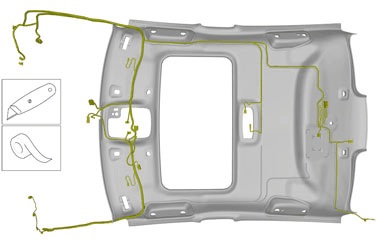

Use:  Anti-squeak tape, 1161842

VEHICLES WITH HEADLINER CELLULAR PHONE MICROPHONE

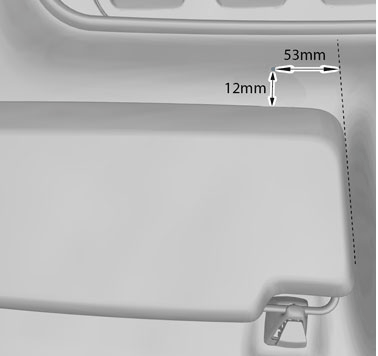

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

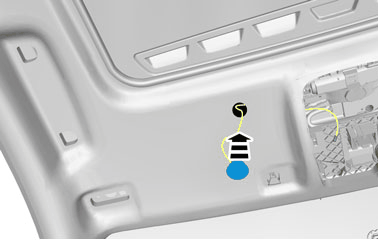

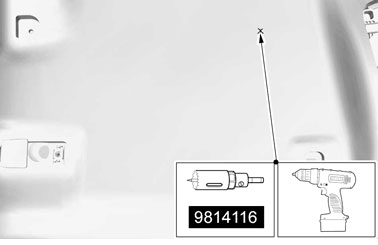

Special Tool: 981 4116

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

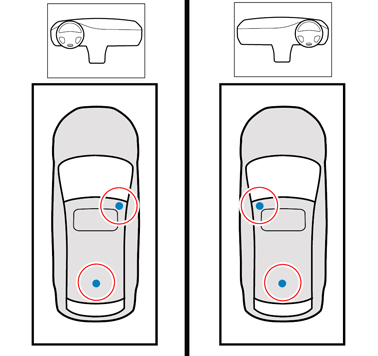

VEHICLES WITH ANC MICROPHONE

Courtesy of VOLVO CARS CORPORATION

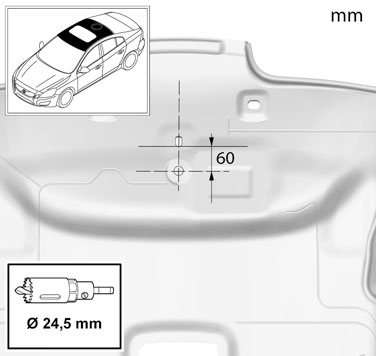

Position and make holes for the front ANC microphone in the same way as for the mobile phone microphone but position the ANC microphone on the passenger side.

Special Tool: 981 4116

REAR MICROPHONE

Courtesy of VOLVO CARS CORPORATION

Special Tool: 981 4116
