Front Seat [2016-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING

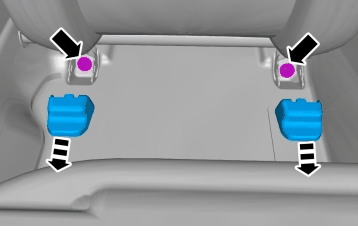

Remove side panel front seat, refer to: SIDE PANEL FRONT SEAT
Remove quick-coupling belt, refer to: SAFETY BELT ANCHOR QUICK RELEASE
CAUTION:

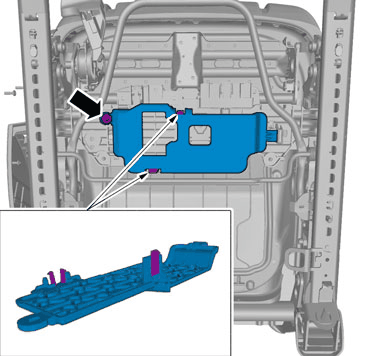

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

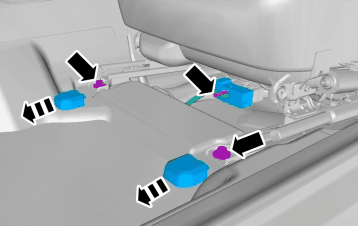

Torque: Front seat to body, 40Nm
Torque: Front seat to body, 40Nm

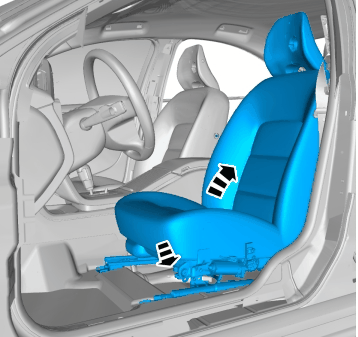

NOTE:
This step requires the aid of another technician.
