B-Pillar Trim Panel [2016-2018]: Removal

Disconnect quick-release belt, refer to: SAFETY BELT ANCHOR QUICK RELEASE

Detach the following items:

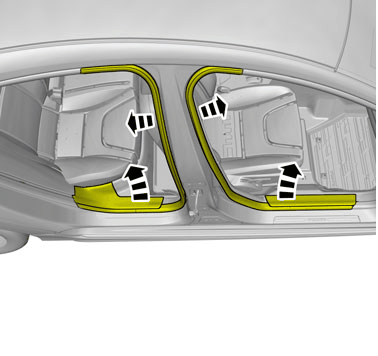

• front sill molding, refer to: FRONT SILL MOLDING
• rear sill molding, refer to: REAR SILL MOLDING

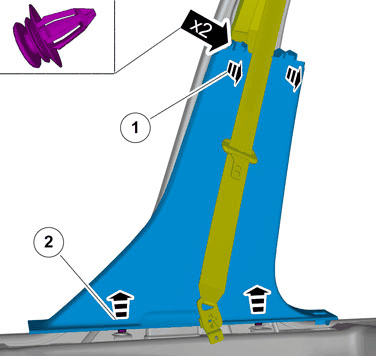

Courtesy of VOLVO CARS CORPORATION

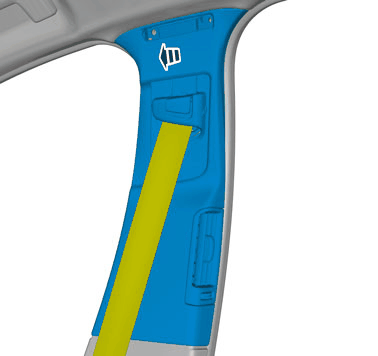

Courtesy of VOLVO CARS CORPORATION

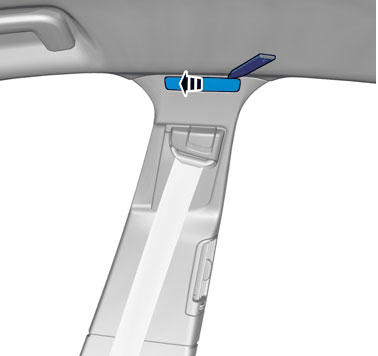

Courtesy of VOLVO CARS CORPORATION

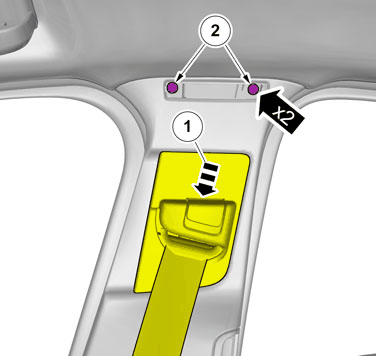

Courtesy of VOLVO CARS CORPORATION

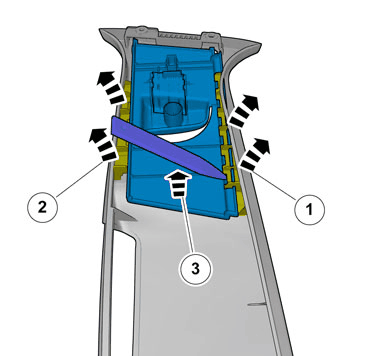

Courtesy of VOLVO CARS CORPORATION

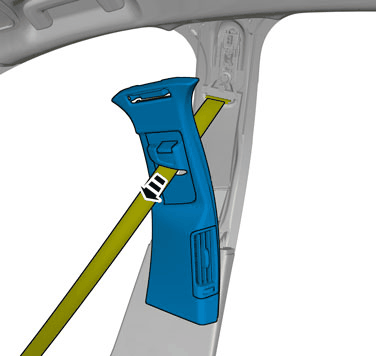

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
