Application Of Paint Protection [2016-2018]

NOTE: For information on Volvo color coded illustrations, refer to: IMAGES

Materials
Designation	Part number
Paint protection	31371814 (USA/CAN excluded), China 31371816

APPLICATION OF PAINT PROTECTION

WARNING:

Wear safety goggles and protective gloves.

WARNING:

Before using the product, make sure to read and understand the Material Safety Data Sheet supplied by the manufacturer or supplier.

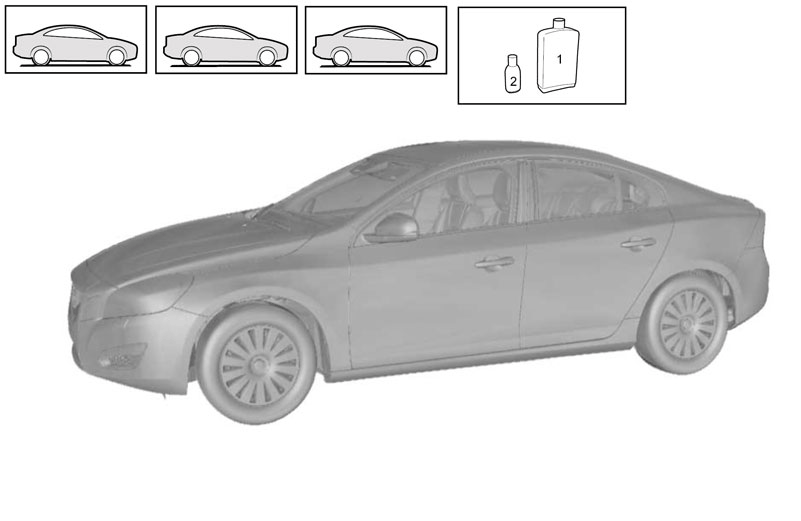

GLL1022424

Courtesy of VOLVO CARS CORPORATION

Use: Paint protection, 31371814 (USA/CAN excluded), China 31371816

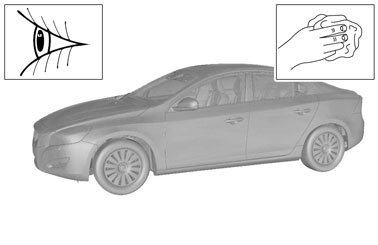

GLL1003868

Courtesy of VOLVO CARS CORPORATION

Rinse with clean water.
Shampooing
Rinse with clean water.
Wiping with soft cloth or shammy-leather.
Inspection

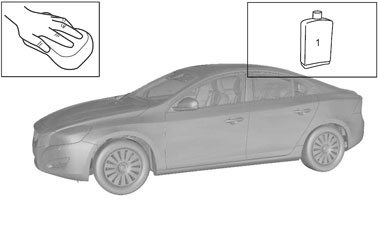

GLL1005433

Courtesy of VOLVO CARS CORPORATION

Application as illustrated.

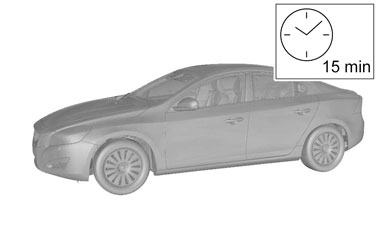

GLL1011571

Courtesy of VOLVO CARS CORPORATION

GLL1003868

Courtesy of VOLVO CARS CORPORATION

Rinse with clean water.
Drying

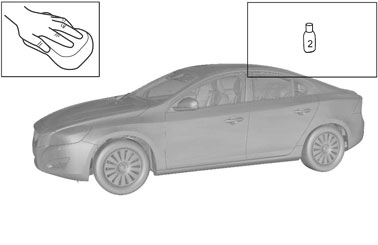

GLL1020313

Courtesy of VOLVO CARS CORPORATION

Masking

Application as illustrated.

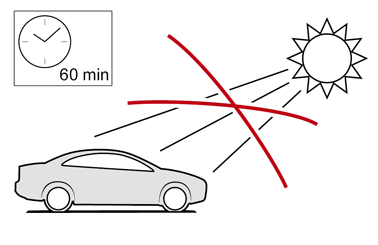

GLL1010804

Courtesy of VOLVO CARS CORPORATION

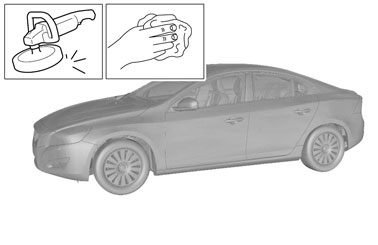

GLL1023981

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Observe caution when carrying out this step.

Use polishing machine adjustable between 1000 RPM and 3000 RPM.

Drying

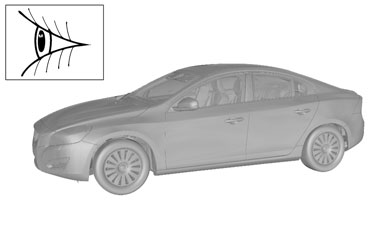

GLL180338

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Avoid using strong agents such as degreasers on the vehicle during the time after treatment. This applies to the first 2-3 washes after treatment.

Inspection
