Protective Plate [2016-2018]: Removal

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

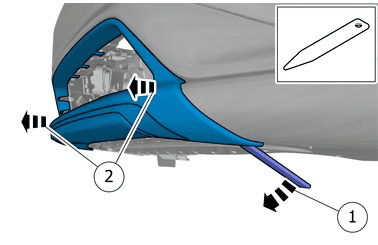

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

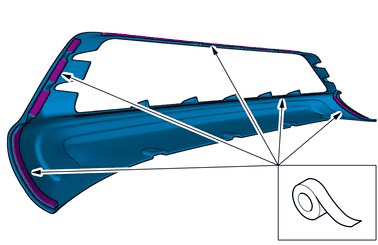

CAUTION:

Make sure not to damage painted surfaces.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

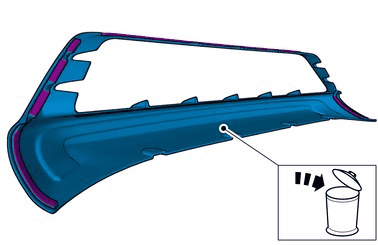

NOTE:

Make sure that a new component is installed.
