Protective Plate [2016-2018]: Installation

When installing, the car must retain a temperature of 20 degrees C.

Courtesy of VOLVO CARS CORPORATION

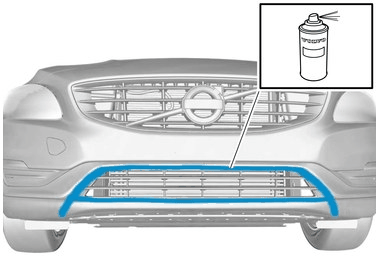

Use:  Cleaning agent, 1161721

Courtesy of VOLVO CARS CORPORATION

Use:  Primer, 1161765

Courtesy of VOLVO CARS CORPORATION

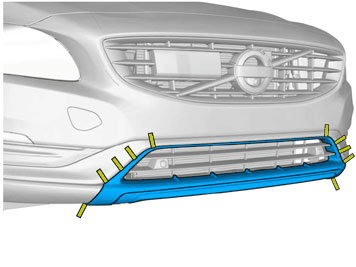

Fold the protective film forward

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

HINT: Press and apply pressure to the part over the tape for at least 20 seconds.

Remove the protective film.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

After installation, the car must not be washed for 48 hours
