Removal And Installation

REMOVAL

Perform wing extension rear, refer to: REAR FENDER WIDENER

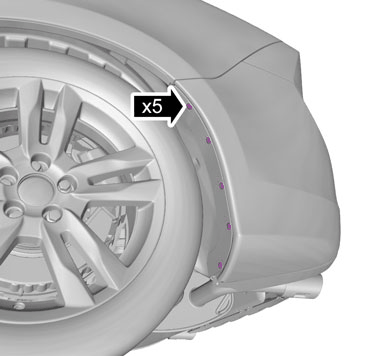

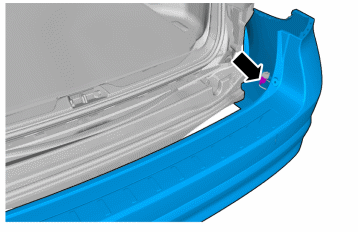

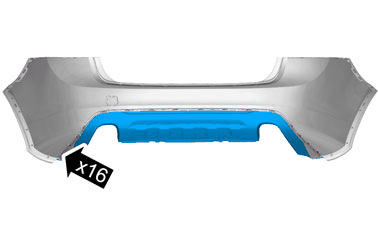

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the screws.

VEHICLES WITH INTEGRATED EXHAUST END PIPES

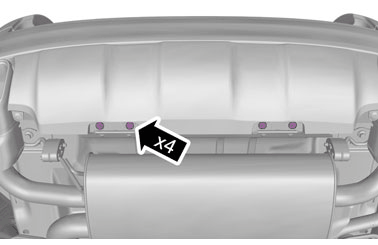

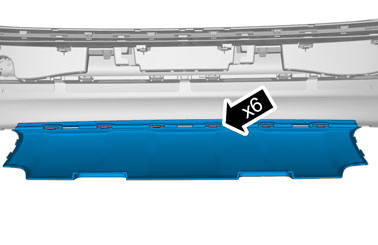

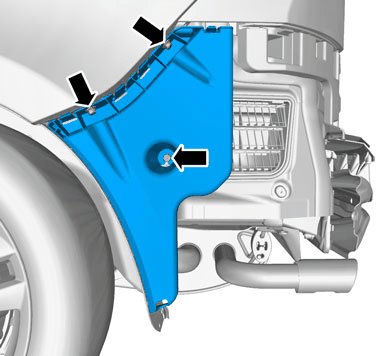

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

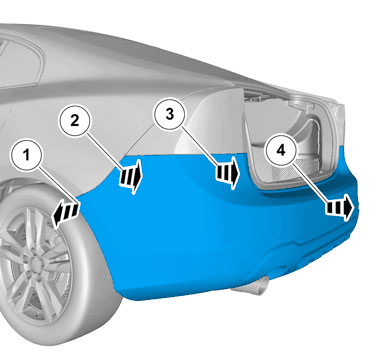

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires the aid of another technician.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector.

INSTALLATION

To install, reverse the removal procedure.

TRANSFERRING COMPONENTS

NOTE:

The following steps are only necessary when installing a new component.

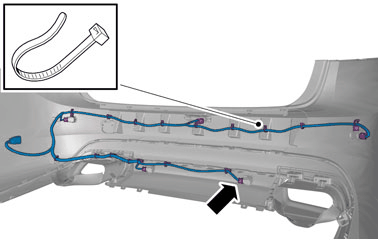

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Remove the cable harness clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

VEHICLES WITH INTEGRATED EXHAUST END PIPES

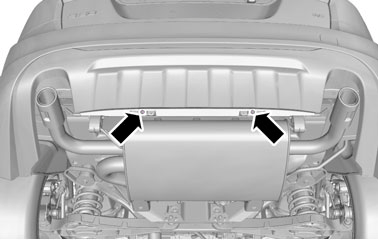

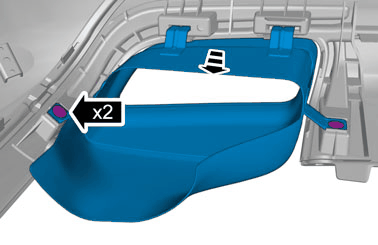

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the screws.

Remove the marked part.

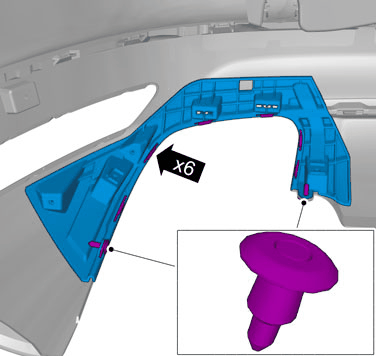

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the clips.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

VEHICLES WITH KEYLESS ENTRY

Courtesy of VOLVO CARS CORPORATION

Release the catches.

Remove the marked part.

ALL VEHICLES

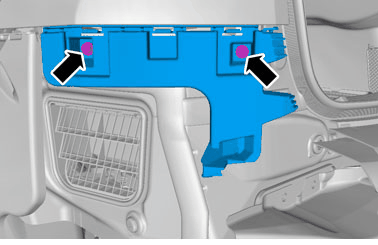

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Remove the screws.

Torque: M6, 10Nm

Remove the marked part.
