Removal And Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

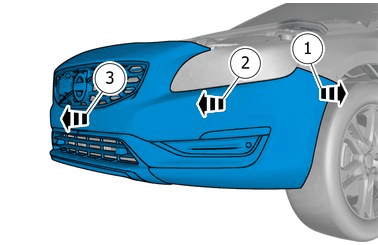

Remove the clips.

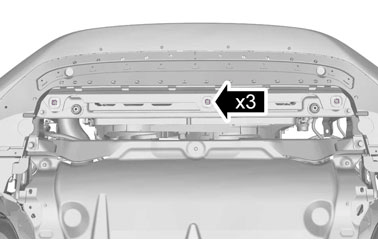

Remove the screws.

Remove Front Underbody Air Deflector, refer to: FRONT UNDERBODY AIR DEFLECTOR

Courtesy of VOLVO CARS CORPORATION

Remove the clips.

Remove fender widener front, refer to: FRONT FENDER WIDENER

Courtesy of VOLVO CARS CORPORATION

On both sides.

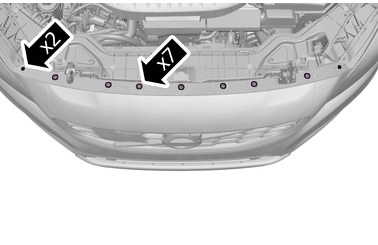

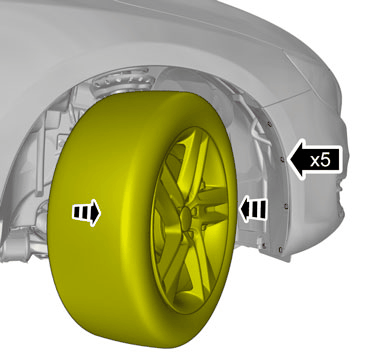

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

WARNING:

Wear safety goggles and protective gloves.

WARNING:

Be prepared to collect escaping fluid.

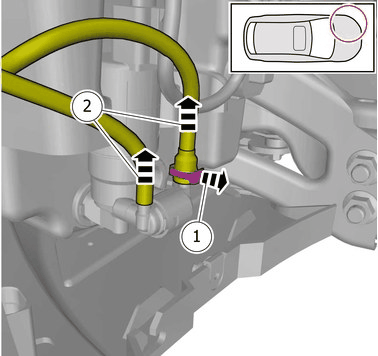

Undo the hoses from the connections.

Courtesy of VOLVO CARS CORPORATION

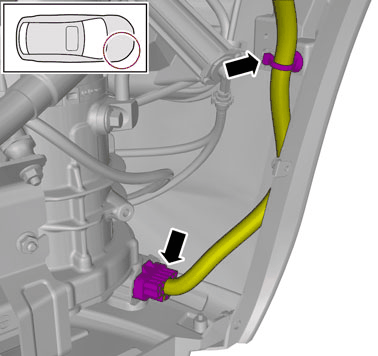

Disconnect the connector.

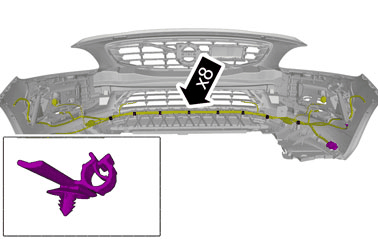

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

NOTE:

This step requires the aid of another technician.

On both sides.

TRANSFERRING COMPONENTS

NOTE:

The following steps are only necessary when installing a new component.

Courtesy of VOLVO CARS CORPORATION

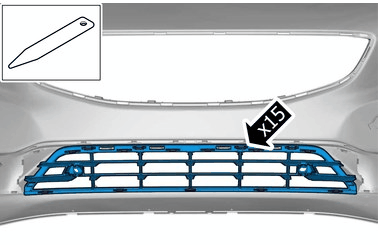

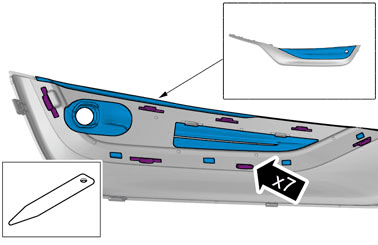

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The number of connectors, cables and cable ties may vary depending on the vehicle specification.

Remove nozzle headlamp washer, refer to: HEADLAMP WASHER JET

Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

NOTE:

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

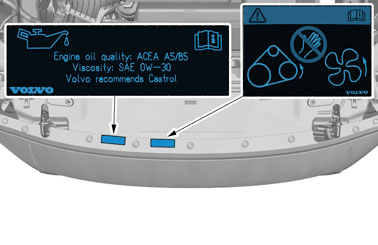

NOTE:

Make sure that a new component is installed.

Courtesy of VOLVO CARS CORPORATION

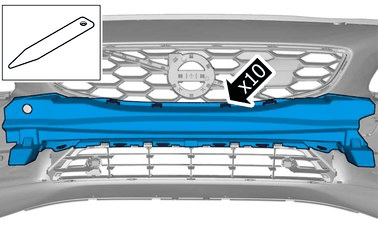

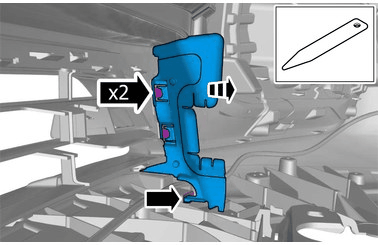

Release the catches.

Remove the marked part.

Remove daytime running lights, refer to: DAYTIME RUNNING LIGHT DRL

Remove the radiator masking, refer to: RADIATOR GRILLE

Courtesy of VOLVO CARS CORPORATION

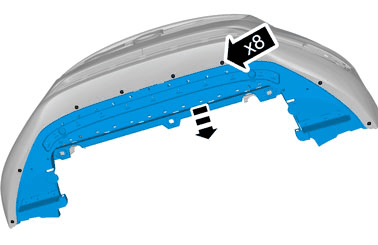

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

On both sides.

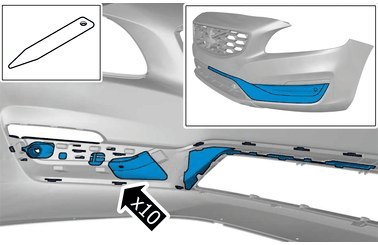

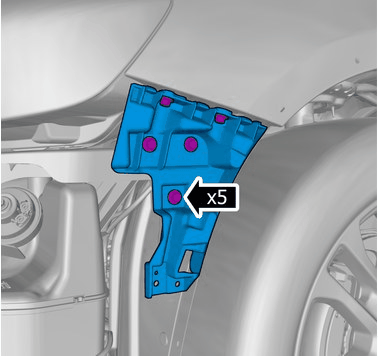

Release the catches.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

On both sides.

Torque: Bracket to front fender, 6Nm

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that new components are installed.

INSTALLATION

To install, reverse the removal procedure.
