Tail Lamp [2016-2018]: Removal

See the information regarding component location, tail lamp, refer to: LOCATION OF COMPONENTS, TAIL LAMP.

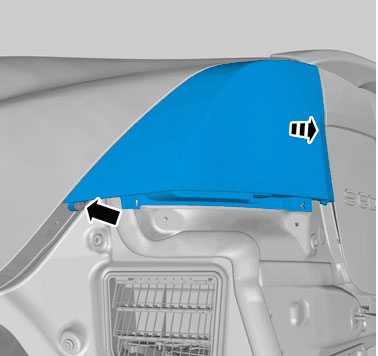

Remove panel, tailgate, refer to: PANEL, LUGGAGE COMPARTMENT LID

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

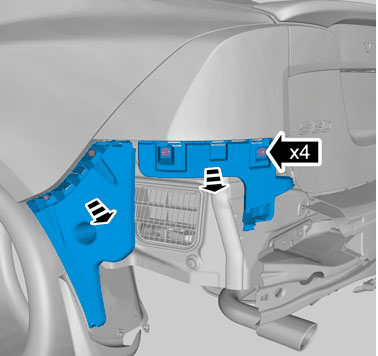

Loosen relevant side casing bumper rear, refer to: COVER BUMPER REAR

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

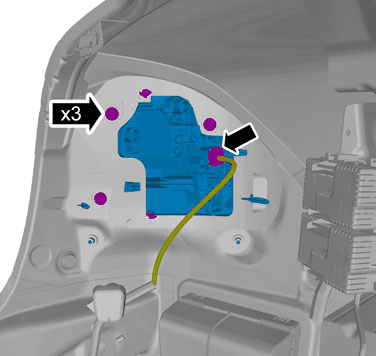

Remove side panel cargo compartment, refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

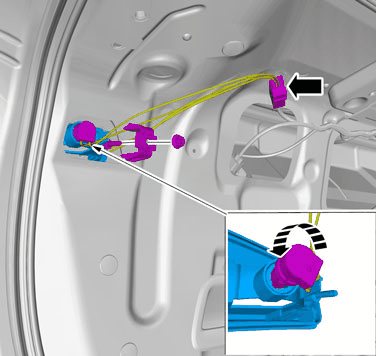

Courtesy of VOLVO CARS CORPORATION
