Sill Molding Battery [2016-2018]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
 Courtesy of VOLVO CARS CORPORATION
|

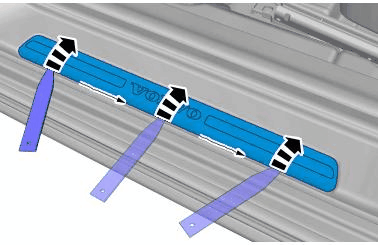

Use:
Interior trim remover
 Courtesy of VOLVO CARS CORPORATION
|
 Courtesy of VOLVO CARS CORPORATION
|

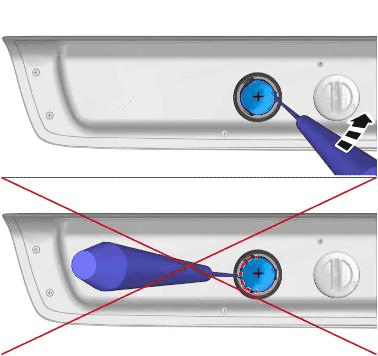

CAUTION:
Note the placing of the tool.
 Courtesy of VOLVO CARS CORPORATION
|

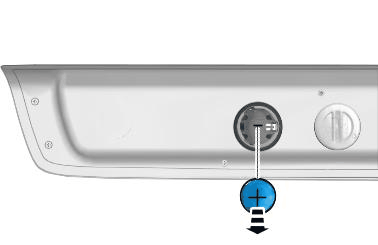

CAUTION:
Make sure that the components are positioned correctly.
