High Mounted Stop Lamp [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

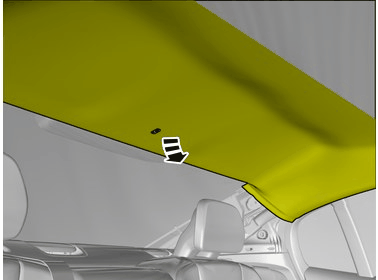

Remove the C-pillar trim panel, refer to: C-PILLAR TRIM PANEL

Courtesy of VOLVO CARS CORPORATION

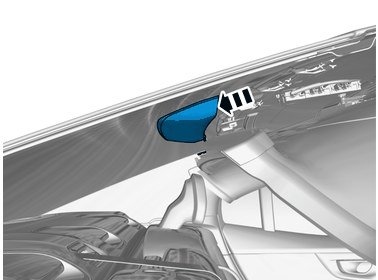

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

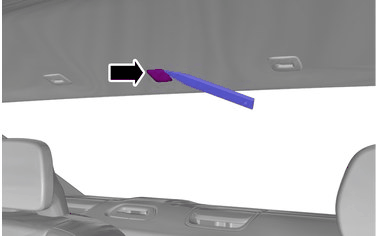

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to crease the headliner.

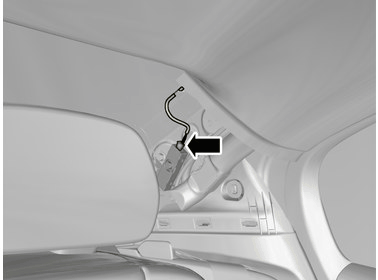

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
