Headlamp Bulb (Xenon) [2016-2018]: Removal

WARNING:

Wear safety goggles and protective gloves.

Remove the headlamp, refer to: HEADLAMPS

See information about component location headlamp (bi-xenon), refer to: LOCATION OF COMPONENTS, HEADLIGHTS

GLL172455Courtesy of VOLVO CARS CORPORATION
CAUTION:

Only use moderate force.

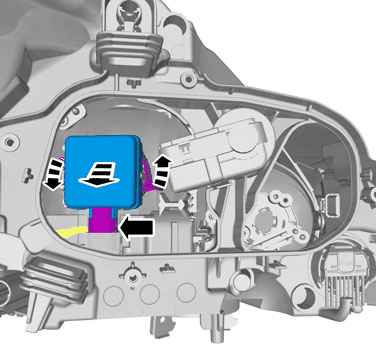

GLL172456Courtesy of VOLVO CARS CORPORATION
