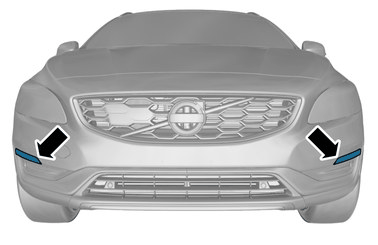

Daytime Running Light (DRL) [2016-2018]: Removal

Remove casing bumper front, refer to: COVER BUMPER FRONT

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

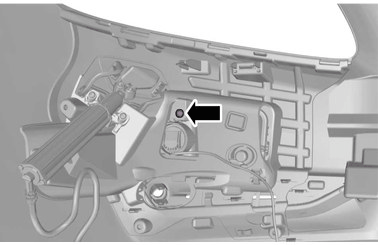

Remove the screw.

Courtesy of VOLVO CARS CORPORATION

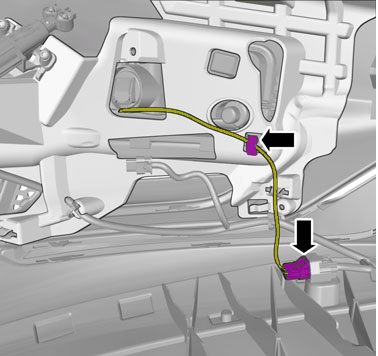

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

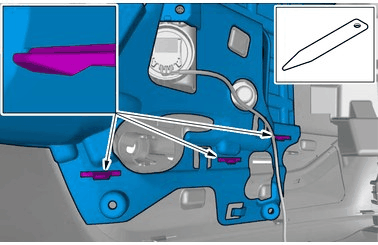

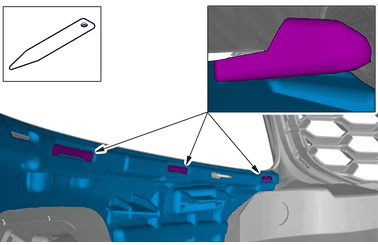

Release the catches.

Courtesy of VOLVO CARS CORPORATION

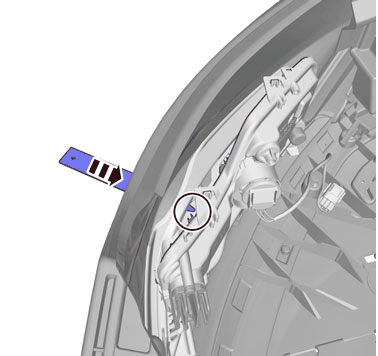

Release the catches.

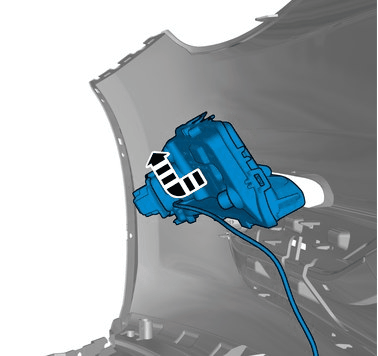

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

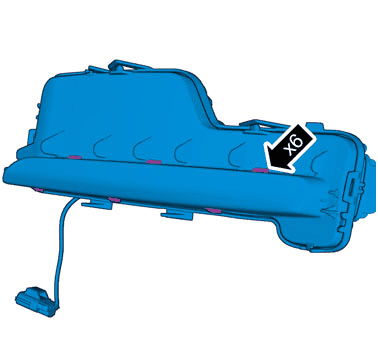

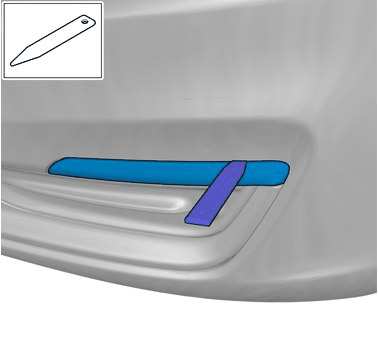

Release the catches.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.
