Phone Module (PHM) [2016-2018]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

GLL166009

Courtesy of VOLVO CARS CORPORATION

Remove glove compartment, refer to: GLOVE COMPARTMENT

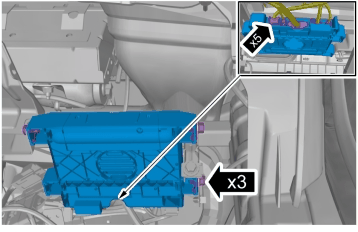

GLL165333

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the component terminals are not bent or damaged.

Torque: M6, 10Nm

VEHICLES WITH AFTER THEFT SYSTEM FOR VEHICLE RECOVERY (ATSVR)

GLL173779

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

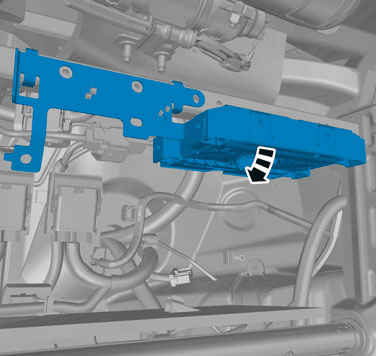

GLL173780

Courtesy of VOLVO CARS CORPORATION

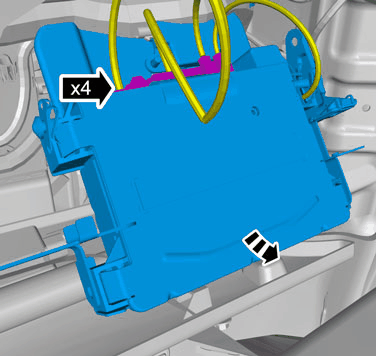

GLL173781

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

CAUTION:

Note the position of the components before removal.

NOTE:

Make sure that the component terminals are not bent or damaged.

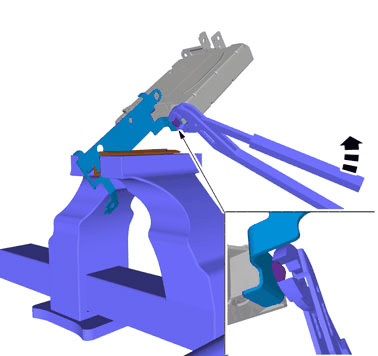

GLL173782

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Make sure that the component is secured with shear bolt (or bolts).

GLL173783

Courtesy of VOLVO CARS CORPORATION

Torque: M6, 10Nm

GLL173784

Courtesy of VOLVO CARS CORPORATION

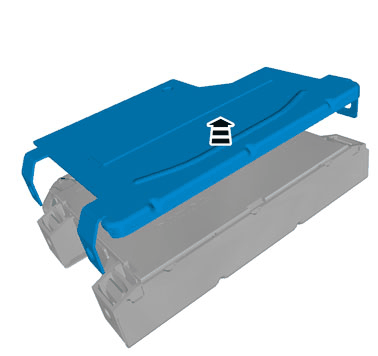

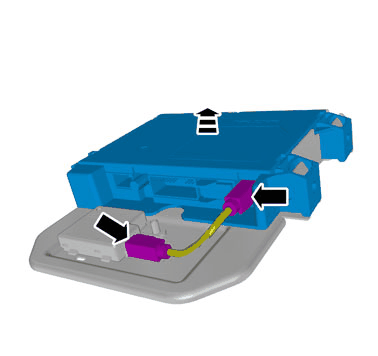

GLL173785

Courtesy of VOLVO CARS CORPORATION
