Antenna, Global Positioning System Module (GPS) [2016-2017]: Removal
CAUTION:

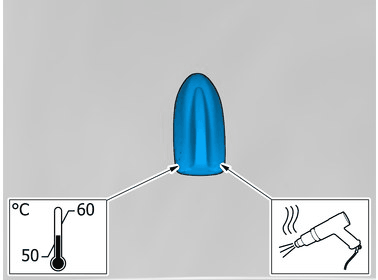

Make sure that the surface is clean and free of foreign material before taping around the component. Tape around the component to avoid paint damage.
Use: Hot-air gun
CAUTION:

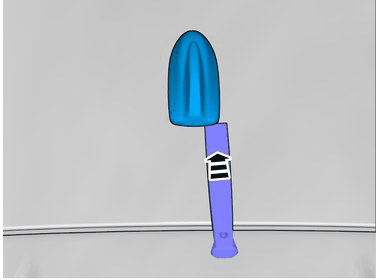

Observe caution when carrying out this step.
Use hands only.
On both sides.
CAUTION:

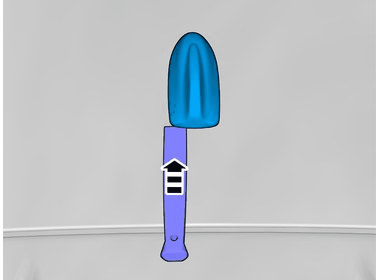

Observe caution when carrying out this step.
Use hands only.
On both sides.
CAUTION:
Take extra care when handling the component terminals.
NOTE:
The number of connectors may vary depending on the vehicle's equipment level.

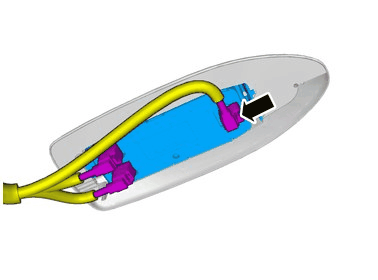

Disconnect the connectors.

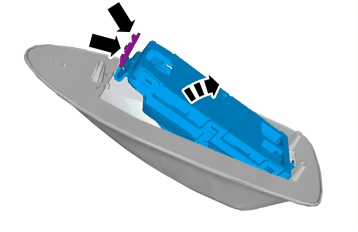

Remove the marked part.
Release the catches.
