Headlamp Leak Test [2016-2018]

Courtesy of VOLVO CARS CORPORATION	951 2985 Measuring tools  Tool number:  951 2985 Tool description:  Measuring tools Tool boards:  20
Courtesy of VOLVO CARS CORPORATION	951 2775 Cylinder leak tester  Tool number:  951 2775 Tool description:  Cylinder leak tester Tool boards:  21

Materials
Designation	Part number
Butyl tape	1161783

REMOVAL

Remove the headlamp, refer to: HEADLAMPS

CHECK

Courtesy of VOLVO CARS CORPORATION

HINT: The number of components indicated in the graphic may vary depending on the vehicle's equipment level or for other reasons.

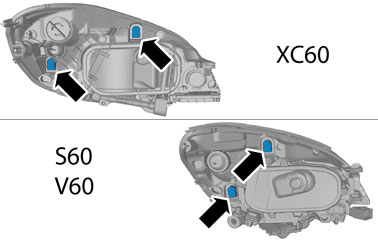

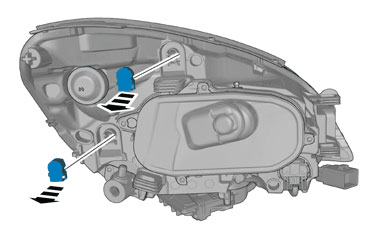

Make sure to seal all vent openings.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Use:  Butyl tape, 1161783

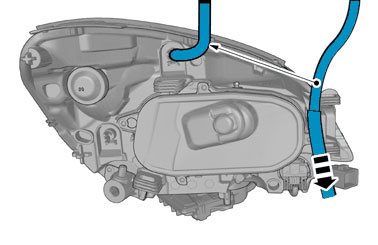

Remove the hose.

Courtesy of VOLVO CARS CORPORATION

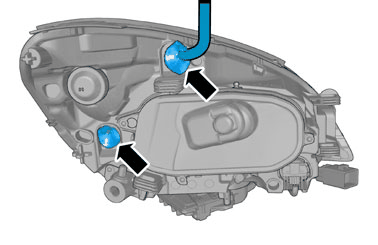

Use:  Butyl tape, 1161783

Courtesy of VOLVO CARS CORPORATION

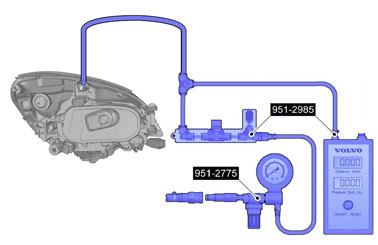

Special Tool: 951 2985   and Special Tool: 951 2775

Courtesy of VOLVO CARS CORPORATION

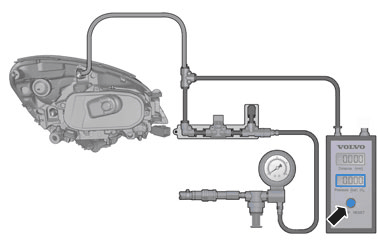

Start the pressure measuring tool. Check that the reading of the tool is 0 bar.

Courtesy of VOLVO CARS CORPORATION

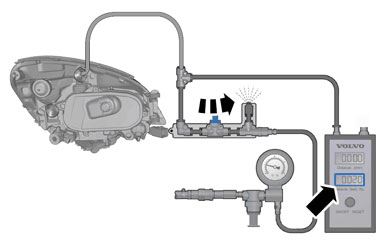

Adjust the pressure to maximum 40 mbar.

Courtesy of VOLVO CARS CORPORATION

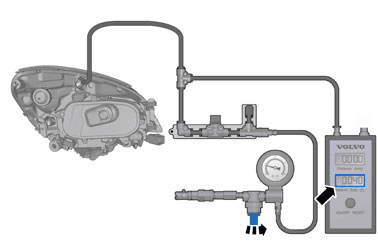

Close the valve and wait for 30 seconds. If the pressure does not drop below 20 mbar, the headlamp is considered to have no leaks.

INSTALLATION

To install, reverse the removal procedure.
