Airbag Passenger (SRS), Disconnecting [2018]: Deactivation
Local laws and regulations may not permit the passenger air bag to be permanently disabled.
See the safety information regarding pyrotechnic systems, refer to: SAFETY INFORMATION PYROTECHNICAL SYSTEMS
See information regarding the handling of non-deployed pyrotechnical parts, refer to: HANDLING NON-DEPLOYED PYROTECHNICAL PART
Deployed pyrotechnic components must be disposed of according to local regulations.
See information regarding the disposal of pyrotechnical parts, refer to: DISCARDING PYROTECHNIC COMPONENTS
Remove seatbelt retractor front, refer to: FRONT SAFETY BELT RETRACTOR
If permanently disabling or enabling the passenger air bag a new seat belt for vehicles without or with a passenger air bag must be installed.
Install seatbelt roll front, refer to: FRONT SAFETY BELT RETRACTOR
Use: Strip clamp, 983671
Use: Tape, 9128331
Remove glove compartment, refer to: GLOVE COMPARTMENT
Battery, disconnection, refer to: BATTERY DISCONNECTING AND CONNECTING

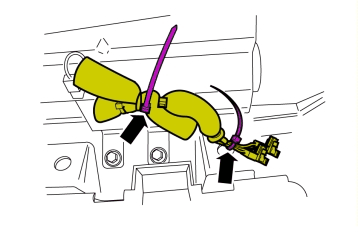

Use: Strip clamp, 983671
Use: Strip clamp, 983671
Use: Tape, 9128331
Install the glove compartment, refer to: GLOVE COMPARTMENT
Follow the instructions regarding components with double-sided adhesive tape, refer to: COMPONENTS WITH DOUBLE-SIDED TAPE
Perform Battery, connecting, refer to: BATTERY DISCONNECTING AND CONNECTING
Order and download the appropriate Volvo software.
Perform supplemental restraint system (SRS), post check, refer to: SUPPLEMENTARY RESTRAINT SYSTEM
Fill in the form, disconnecting the passenger side airbag (SRS), approval, refer to: RECONNECTING/DISCONNECTING THE PASSENGER SIDE AIRBAG (SRS)
