Cylinder Head [2017-2018, B4204T11]: Removal

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

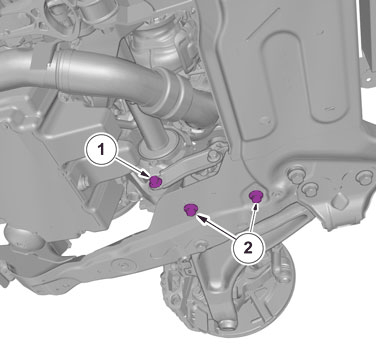

Remove the following items:

1. Torque:  Lower torque rod rear right, to Engine mount bracket, 110Nm

2. Torque:Lower torque rod rear right, to subframe,

   • Stage 1: 90Nm
   • Stage 2: 80°

Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 7486

Remove the following items:

• camshaft seal, refer to: CAMSHAFT SEAL
• the fuel rail, refer to: FUEL RAIL
• turbocharger, refer to: TURBOCHARGER
• coolant pump, refer to: ENGINE COOLANT PUMP
• Oil trap, refer to: OIL TRAP

Courtesy of VOLVO CARS CORPORATION

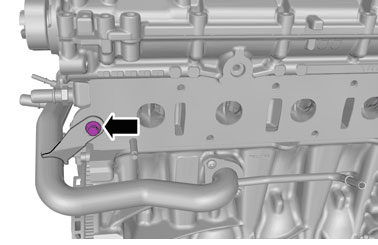

Remove the screw.

Fold marked part aside.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Torque:  M6, 10Nm

Courtesy of VOLVO CARS CORPORATION

Remove the screws.
