Crankshaft Seal, Rear [2017-2018, B4204T11, TG-81SC AWD | 2016, B5254T12, TF-80SC AWD]: Removal

Remove drive flange plate, refer to: CARRIER PLATE

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Take extra care not to damage the mating faces.

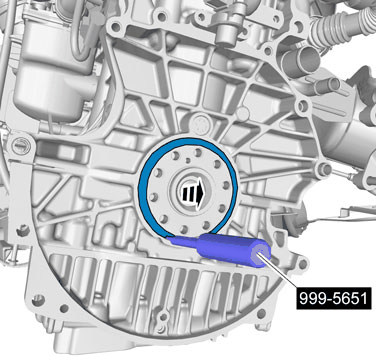

Special Tool: 999 5651
