Crankshaft Front Seal [2017-2018, B4204T11, TG-81SC AWD]: Installation

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

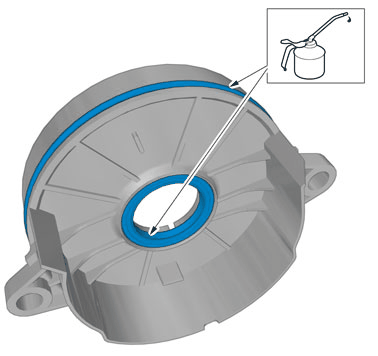

Use: Engine oil

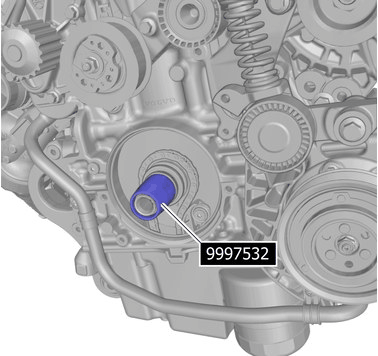

Courtesy of VOLVO CARS CORPORATION

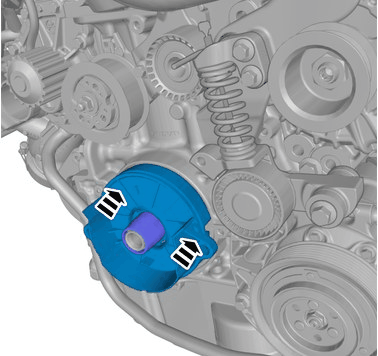

CAUTION:

Take extra care not to damage the seal.

NOTE:

Make sure that the seal is correctly located.

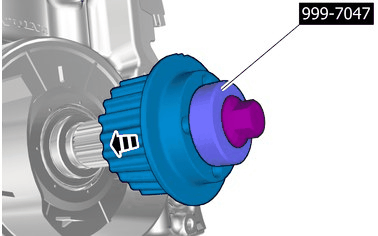

Courtesy of VOLVO CARS CORPORATION

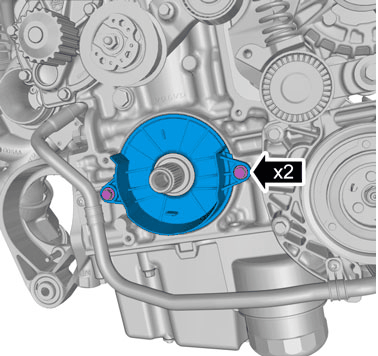

Torque: M6, 10Nm

Tighten the bolts.

NOTE:

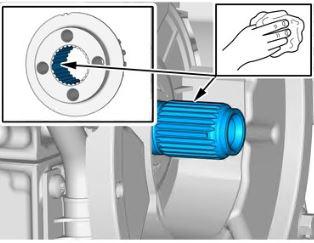

Make sure that the mating faces are clean and free of foreign material.

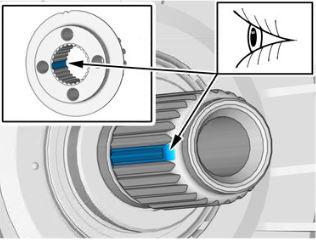

Note position of components.

Courtesy of VOLVO CARS CORPORATION

To install, reverse the removal procedure.
