Crankshaft Front Seal [2016, B5254T12, TF-80SC AWD]: Installation

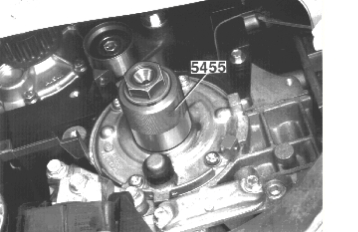

GLL154639Courtesy of VOLVO CARS CORPORATION
CAUTION:

Make sure that the crankshaft is not rotated when installing the crankshaft seal.

Special Tool: 999 5455

GLL153580Courtesy of VOLVO CARS CORPORATION
NOTE:

The component can only be installed in 1 position.

Install timing belt, refer to: TIMING BELT
